Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 3.91mm | Pixel Density: | 65536 Pixels/㎡ |
---|---|---|---|
Brightness: | >1,200 Nits | Refresh Rate: | >1,920 Hz |
Viewing Angle: | 160° / 140° | Cabinet Size: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
Cabinet Weight: | 8kg / 14kg Per Pc | Warranty: | 2 Years |
Highlight: | indoor full color led display,indoor led billboard |
P4.81 Tools Free Installation Indoor Rental LED Video Display
Features:
1. High contrast
LED professional lamp bead USES high quality 2121 black lamp, raise luminescence brightness, reduce screen black time brightness at the same time.
Unique black mask processing technology, the screen contrast is greatly improved.
2. High gray level
The display of the screen is almost perfect with low brightness, and the appearance of the screen is higher than the traditional display.
That can show more image details, no information loss.
3. High refresh rate
The screen intake five black screen picture stability without ripples, dealing with the dynamic display screen, the image edge is clear, the screen has good dynamic performance, the image information accurately real reduction, make the video screen clear fluid, bring good visual enjoyment.
4. Wall installation to streamline space
Pasted wall, Mosaic, landing multiple installation methods, simple and beautiful, the maintenance of post-maintenance is more simple and convenient.
Specification:
Physical Pitch | 3.91mm |
Pixel Configuration | SMD2121 |
Pixel Density | 65,536 pixels/㎡ |
Module Dimensions(W x H) (mm) | 250 x 250 |
Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 |
NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 |
Physical Resolution of Module (W x H) | 64 x 64 |
Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 |
Panel Material | Die-Casting Aluminum |
Single Cabinet Weight | 8 / 14 kg/panel |
Processing | 16bit |
Colours | 281 trillion |
Contrast Ratio | 5,000 : 1 |
Average Power Consumption | 325W /Sqm |
Max Power Consumption | 780W /Sqm |
Operating Temp/Humidity | -10℃ - 60℃ / 10℃ - 60℃ |
Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ |
Refresh Rate | >1,920 Hz |
Brightness | ≥1,200nits |
Horizontal Viewing Angle | 160° |
Vertical Viewing Angle | 140° |
Expected Lifetime | 100,000 Hrs |
Servicing | Front / Rear |
IP Rating (Front/Rear) | IP 40 / IP 21 |
Scan Method | 1/16 Scan |
Certification | CCC, CE, ETL, RoHS |

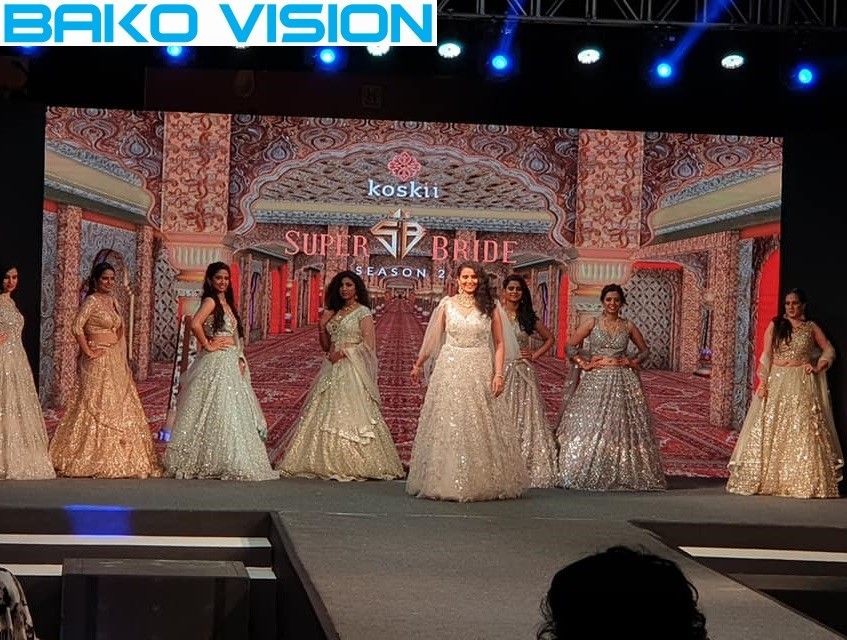

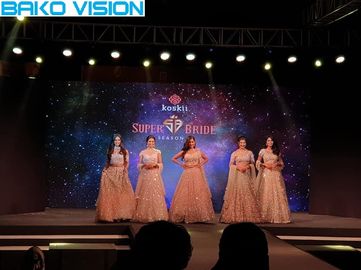

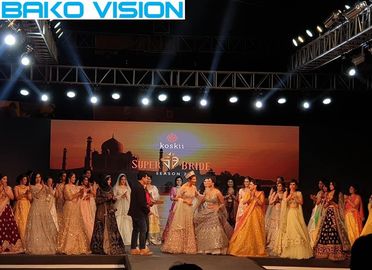

Case:
FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display you provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5. May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6. What is the payment method?
We support the payment methods as TT.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm) led display screen
8. Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9. What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
10. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
11. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or co
