Product Details:
Payment & Shipping Terms:
|
| Tickness: | 33mm | Specification (Wxh) (mm): | 280*210 |
|---|---|---|---|
| Refresh Rate: | >2880 Hz | Contrast Ratio: | 4000:1 |
| Driving Method: | 1/28 Dynamic Scan | Frame Rate: | 60 Fps |
| Colors: | 281 Trillion | Power Supply: | G-Energy Or Meanwell |
| Panel: | 28 Kg | Control System: | Linsn Or Novastar |
| Driver IC: | MBI 5124 | Material: | Aluminum |
| Highlight: | led poster screen,mirror led display |
||

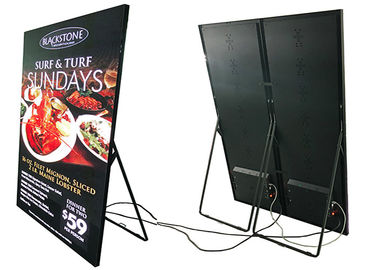

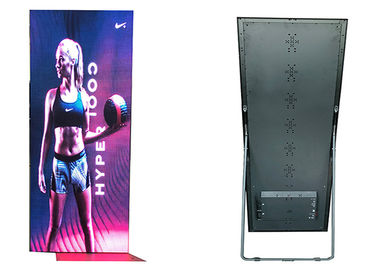

Indoor Digital Advertising Full Color P2.5mm Led Panel Board Led Poster Mirror Display
P2.5 poster advance
The P2.5 led poster is a brand-new commercial led display, mostly used in the shopping mall or brand store, also support wifi,USB etc.control mode,and they can be installed in fold-out stand, standby,wall-mounted.
Products Feature
1,Ultra slim and light-weight body, easy to lift up
The tickness of Our this series poster screen only 35mm. While others 45mm.making installation easy and fast .
2, HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3, Easy operation
Jointed correctly, being installed & dismounted by one person without tool.
4. Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
5.Front service ability
Module replacement from front side with a handle magnet
Specifications
| BP-2 | |
| Physical Pitch | 2.5mm |
| Pixel Configuration | SMD2020 |
| Pixel Density | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 |
| Panel Material | Aluminum |
| Colors | 281 trillion |
| Sigle Cabinet Weight | 32kg |
| Processing | 16 bit |
| Refresh Rate | >=2800 Hz |
| IP Rating | IP40 |
| Viewing Angle | 160°/140° |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set |
| Servicing | Front |
| Driving Method | 1/28 Dynamic Scan |
| Frame Rate | 60 fps |
Products detail
Poster/Mirror LED display is a new type advertising machine, which is popular in the led display filed
1. Installation: Various installation type adapt to different situation,easily to install and depart,more convenient to move anywhere
2. Application : Shopping center,hotel,wedding,airport, TV shows ,DJ background , live evets , concerts , any stage use
3. Control mode: 3G/4G, wifi, internet, USB
Poster LED Display is so far the thinnest and lightest led display products,With a thickness of 45mm and a lightweight body (only 32kg), led poster board makes an ideal solution for a wide array of installation requirement including fold-out stand, hanging and wall mounting.

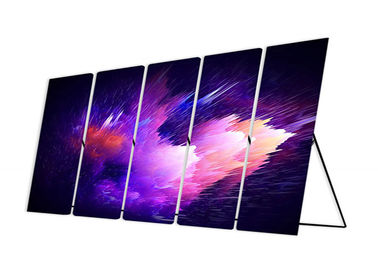

Multi-application
Applied in shopping mall, meeting room, control center, airport, station, super market, canteen and restaurant. Can be used as → Advertising platform;
→ Urgent information, instant message release
→ Publicity platform, brand model window
→ Shopping guide information, supporting service information release
Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our avantages:
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
