Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3.91mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| Pixel Configuration: | SMD1921 | Contrast Ratio: | 4000:1 |
| Highlight: | indoor full color led display,indoor led billboard |
||
High Refresh Rate HD indoor rental LED display P3.91 video wall With Back Maintenance
Fast delivery stock 500x500mm 500x1000mm cabinet SMD 1921 low price p4.81 p3.91 indoor rental led display
1. Ultra-Thin,Ultra light, Aluminum Alloy frame(cabinet)--0.89kg/module, no more than 25.4kg/sqm;
2. Special Walldrape design, no need buy more structure for installation;
3. Fast and front maintenance design, make your LED screen business more proffessional and easier;
4. High refresh rate 3840Hz, 16bit Gray scale, high levels and effect that able to be used at different Occasion;
5. Top Design: Smart/Auto function for inspect & tracking temperature, Voltage, working time. You can take care of your Baby Screens at home now;
Our advantage:
1.We have specilsed in indoor&outdoor LED display and LED modules more than 10 years.
2.We are the manufacturer and wholesaler for LED display, LED module,flexible LED strip light injection LED module and LED accessories. We can control the quality and save cost.
3.New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
4.The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
5.Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
6. 100% QC inspection before Shippment. Module surface flatness ± 0.2mm, the entire screen has good flatness
Parameter (you can click on this and then you will get the catalogue ►5-Indoor rental led display.pdf)
| BIR-III-3 | BIR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
System topology
1. Excellent visual effect, better viewing effect for text and graphic video
2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;
3. High contrast ratio and good evenness, high uniformity,without mosaic
4. Resist of the high temperature and antioxidation and anti-statiic;
5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.
6. Long using life & MTBF

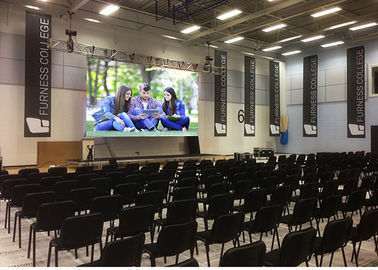

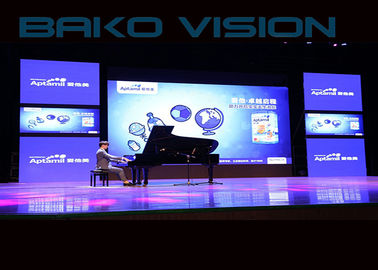

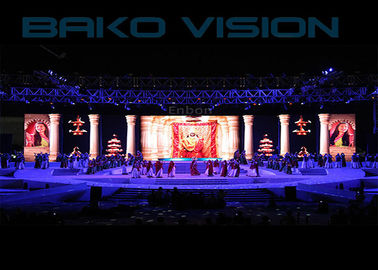

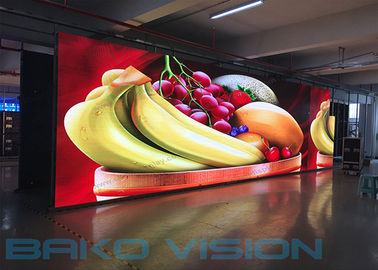

Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc
Packaging and Shipping
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 23 working days after receiving 30% deposit and balance before the shipment
3. Price terms: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen port
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty
