Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3.91mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| Highlight: | outdoor led screen hire,events led display |
||

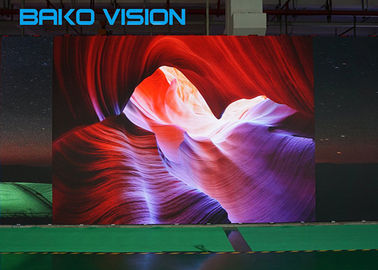

Stage Event Die-casting Aluminum Cabinet Video Wall Screen P3.91 Outdoor Rental LED Display
Outdoor LED display may be widely used at advertising LED display,shopping mall LED display for logo showing,bank & stock exchange led display for rates showing,train & bus station,airport,telecommunication LED screen system for information showing and instruction,stage performances and so on.
Product Features:
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
LED Display Module P3.91/P4.81.
This is P3.91/P4.81 indoor led module , module size is 250mm x 250mm , our common type is Sanan chip led , with chipone 2038s IC, we can also produce it with nationstar /kinglight led ,MBI5124IC, or other type as you like .
Fast refreshing, to swtich without water wave, no flash line, picture display is high definition, the picture display is the best effect. When comparing with ordinary LED display, Bako Vision's display doesn't have ghosting phenomenon, picture is clean and distinct, in addition, it is fast refreshing ratio without water wave. WHAY Display is to adopt high quality LED, to match black protection shade, the contrast ratio is 4000:1, which makes the picture display be more clear and colorful.
Packaging and Shipping
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 23 working days after receiving 30% deposit and balance before the shipment
3. Price terms: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen port
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty
