Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4.81 | Cabinet Dimension: | 500*500/500*1000 |
|---|---|---|---|
| IP Rating: | IP65/IP54 | Brightness: | >6,000 |
| Servicing: | Front/Rear | Driving Method: | 1/16 Scan |
| Gray Scale: | 16bits | Control System: | Novastar |
| Highlight: | outdoor led screen hire,events led display |
||

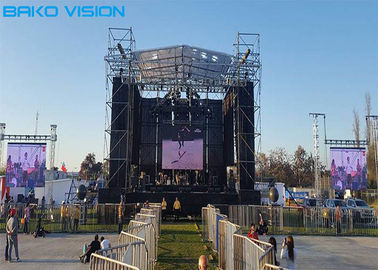

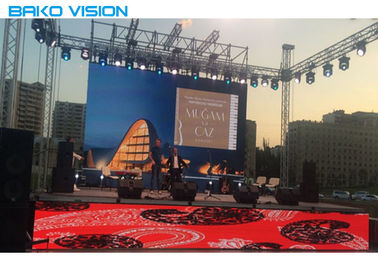

Outdoor Stage Seamless 16 bit Full Color Rental Led Display SMD P4.81 2 Years Warranty
Our indoor LED wall screens come in modules that are 500mm x 500mm in size, with a 3.91/4.81mm pitch. This indoor screen able to deliver a superior contrast ratio due to the use of blackbody LEDs which are non-reflective. A high contrast ratio is critical as it creates a display that can produce vivid colors with excellent uniformity for beautiful images every time.
Basic Parameters:
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 250mm x 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Mode | 1/16 Scan |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
| Standard Cabinet Size | 500mm x 1000mm |
| Cabinet Weight | 14KG |
| Brightness | ≥1300 cd/sqm, adjustable by software |
| Viewing Distance | 4m-40m |
| Viewing Angle | H: 140°; V:140° |
Other Parameters:
| Refresh Rate | 1920HZ, adjustable by software |
| Frame Rate | 120frame/s |
| Grey Scale | 16.7M colors(Synchronized) |
| Color Temperature | R.G.B brightness 256 level adjustable |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 800W/sqm |
| Ave. Power Consumption | 300W/sqm |
| Storage Temperature | -30℃~+70℃ |
| Working Temperature | -20℃~+50℃ |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP43 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| PC Display Resolution | 1280x1024 |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8,Win10 |
| Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
| Certificate | CE, RoHS |
Features:
1, Seamless connection.
2, Special design for the mask to realize higher contrast and larger viewing angle.
3, Signal backup and power backup.
4, Brightness and chromaticity calibration.
Company:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Q&A:
Q1: How to choose a proper led screen for your need?
A: You just need to think of 3 simple questions when you choose a led screen by yourself.
1. Will you use it indoor or outdoor?
2. Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3. what is the appoximate size of the led screen you would like to purchase?
Q2: Which pixel pitch should i choose?
A: There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3: Which control system should i choose?
A: There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4: How to order from you compamy?
A: You can both place order to us by online or to our company directly offline, before place order welcome to contact us for confirmation.
Q5: How to pay?
A: We accept L/C, T/T bank, or paypal or westerunion.
Q6: How to ship?
A: It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL(Fedex,UPS etc) internation express company, or by sea according to your goods weight and volume and the delivery time you need.
Q7: How to install it after i received it?
A: We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
