Product Details:
Payment & Shipping Terms:
|
| Screen Area: | 960 X 1920mm | Weight Of Screen: | 80kg |
|---|---|---|---|
| Pixel Configuration: | SMD2525 | Control System: | Nova |
| Tube Chip Color: | Full Color | Display Function: | Video |
| Highlight: | led digital billboard,outdoor led billboard |
||

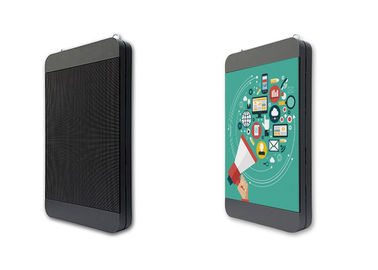

P5 Outdoor Street Pole LED Display 4G Control Double Sided Advertising Screen
1. Intelligent control: with LAN, WIFI, 3G intelligent management module inside, can control the screen as your convenient, change the display content as you want
2. Saving time and labor: once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.
3.High waterproof IP level: with front IP65 and back IP54, good waterproof, can be used outdoor with any weather
4. Easy maintenance: Side open and back maintenance for option, and dot to dot maintenance, easy and quickly
5.SMD led encapsulation confirm the good uniformity and high definition
6. Can be done with single side or double sides
Parameters:
| Outdoor P5 full color led display for pole | ||
| Characteristics | Value | unit |
| Pixel pitch | 5 | mm |
| LED type | SMD2525 | |
| Pixel density | 40000 | Dots/sq.m |
| Module size | 320x160 | mm |
| Module resolution | 64x32 | dots |
| Cabinet size | 1000x2120 | mm |
| Display size | 960x1920 | mm |
| Cabinet resolution | 192x383 | dots |
| Cabinet weight | 80 | Kgs |
| Waterproof IP | 65 | degree |
| Brightness | ≥6000 | CD/ |
| View angle | 140° | degree |
| Gray scale | 16 | Bit |
| Display scale | 4:8 | Million |
| Power consumption(Max.) | 3000 | W/set |
| Power consumption(Avg.) | 1000 | W/set |
| Refresh Frequency | 1920 | Hz |
| Operation Power | AC100~240 | V |
| Operationg Temperature | -50~+50 | ºC |
| Operating Humidity | 10~90% | RH |
| Operating Life | 100,000 | Hours |
Application Reference:
Why Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team
1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
