Product Details:
Payment & Shipping Terms:
|
| Warranty: | 2 Years | Brightness: | 900-1,200 Nits |
|---|---|---|---|
| Life Span: | 100000hours | Cabinet Size: | 500 X 500 X 80mm / 500 X 1000 X 80mm |
| Cabinet Weight: | 8 / 14 Kgs/cabinet | Refresh Rate: | ＞1,920 Hz |
| Highlight: | indoor full color led display,led publicity screens |
||
Indoor P2.6 - P4.81 SMD Tools Free Easy Installation Full Color HD LED Video Display Screen
Features:
1. High refresh rate and high gray scale.
2. Unsurpassed Color Uniformity, High resolution and high contrast.
3. Excellent thermal management.
4. Long service time. Its life span is more than 100000hrs.
5. Frequent video source switching and powerful seamless switching system
6. Good viewing angle and very clear images.
7. Fast Installation and Easy Maintenance, Tools free installation.
8. Slim, Light weight and Quiet, Fanless design
9. color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
Specification:
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/㎡ | 112,896 pixels/㎡ | 65,536 pixels/㎡ | 43,264 pixels/㎡ |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Physical Resolution of Panel (W x H) | 192 x 192 / 192 x 384 | 168 x 168 / 168 x 336 | 128 x 128 / 128 x 256 | 104 x 104 / 104 x 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 400W /Sqm | 400W /Sqm | 325W /Sqm | 310W /Sqm |
| Max Power Consumption | 800W /Sqm | 800W /Sqm | 780W /Sqm | 750W /Sqm |
| Operating Temp/Humidity | -10℃ - 60℃ / 10℃ - 60℃ | -10℃ - 60℃ / 10℃ - 60℃ | -10℃ - 60℃ / 10℃ - 60℃ | -10℃ - 60℃ / 10℃ - 60℃ |
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
| Certification | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS | CCC, CE, ETL, RoHS |

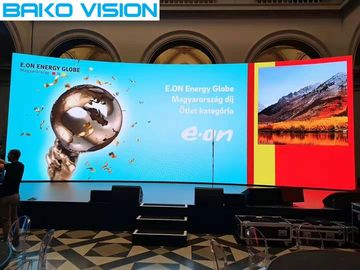

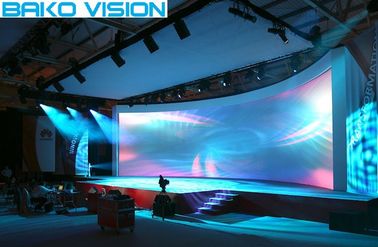

Case (Click below image to link to the video):
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
