Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 480mm X 480mm X 80mm | Pixel Pitch: | 1.5, 1.8, 2.5, 3.0mm |
|---|---|---|---|
| Installation: | Truss Hanging And Ground Support | Gray Scale: | 16 Bit |
| Operating Temp/Humidity: | -10℃- 60 ℃ / 10% - 60% | IP Rating: | IP 40 / IP 21 |
| Highlight: | hd led video wall,modular led display |
||
Indoor HD LED Display Screen for Event , Church , Concert Backdrop LED Wall
Description:
1. TUV EMC certificated, 480mm X 480mm chassis, thickness 80mm.
2. Tools free installation, support front and rear access options.
3. Fast lock system, locating beam, firm and smooth.
4. Indoor fine pitch solution, for fixed commercial advertising, for event holding, for large concernt.
5. High gray level, high refresh, presenting amazing visual effect.
Parameters:
| Physical Pitch | 1.875 mm | 2.5 mm | 3 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
| Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 |
| Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
| NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 128 × 128 | 96 × 96 | 96 × 96 |
| Physical Resolution of Panel (W × H) | 256 × 256 | 192 × 192 | 160 × 160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 260 W /m² | 215 W /m² | 235 W /m² |
| Max Power Consumptionx | 690 W/m² | 640 W/m² | 670 W/m² |
| Operating Temp/Humidity | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Srightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/38 Scan | 1/32 Scan | 1/20 Scan |

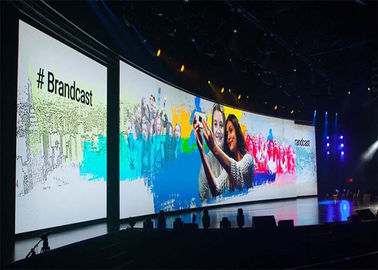

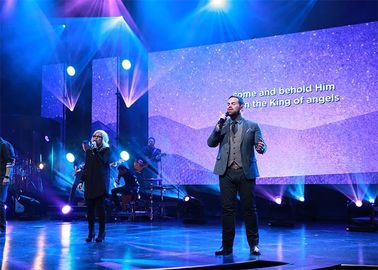

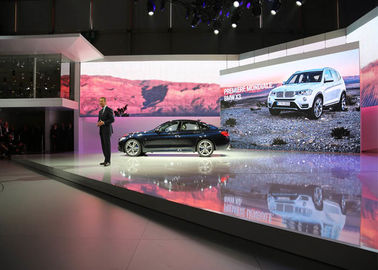

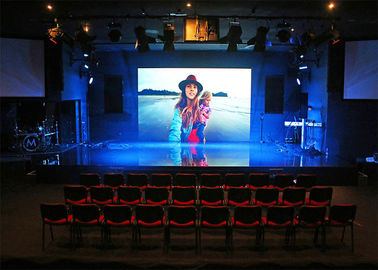

Project reference:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
