Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3.91mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| Highlight: | events led display,led rental display |
||
High performance P3.91/ P4.81/P5.95 SMD Advertising Rental LED Video Screen
Features of Product:
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. Module surface flatness ± 0.1mm, the entire screen has good flatness;
3.High uniformity display color;
4. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
5. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
6. wide application usage, high IP grade,cost effective, customers can enjoy high-quality visual effect with , favorable price, greatly lower investment cost.
Parameter
| BOR-III-4.81 | BOR-III-5.95 | BOR-III-6.25 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 43,264 pixels/m² | 28,224 pixels/m² | 25,600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/ 2*4 | 2*2/ 2*4 | 2*2/ 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H)(mm) | 104*104/104*208 | 84*84/ 84*168 | 80*80/ 80*160 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
Products Image
1. Lighter than ever
Slim and smart ideal substitution for traditional outdoor rental LED screen
The aluminum material makes the cabinet 20% lighter than before.
2. Curved design
Truss hanging and ground support both available
Concave and convex angle can reach to 0°-10° degree
Meeting the demands of creative and customized request.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

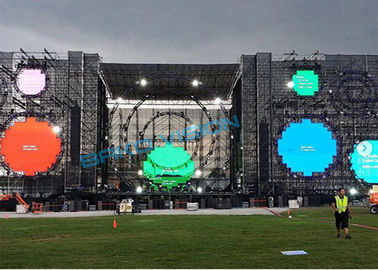

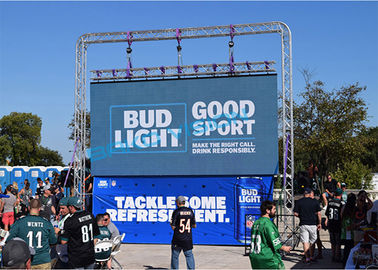

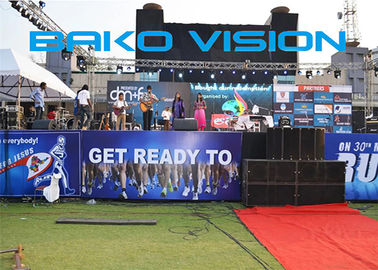

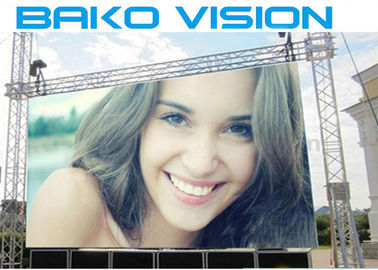

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
