Single Cabinet Weight: | 9 / 15 Kg/Panel | Gray Scale: | Gray Scale |
---|---|---|---|
Colours: | 281 Trillion | Contrast Ratio: | 4, 000:1 |
Refresh Rate: | >1, 920 Hz | Brightness: | 5, 0000nits |
Panel Size: | 500*500/500*1000 | Viewing: | 160/140 |
Usage: | Outdoor Stage | Pixels: | 3.91 4.81 5.95 6.25 |
Driving Mode: | 1/8 Scan | Control System: | Customized |
Highlight: | events led display,led rental display |
Slim Thickness Light Weight Outdoor Rental Stage Show (Curve) Background LED Display with P3.91/P4.81/P5.95 Full Color Good Performance Black SMD Lamp
Quick Detail5-BOR-I-Tia.pdf
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 4000-6000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .

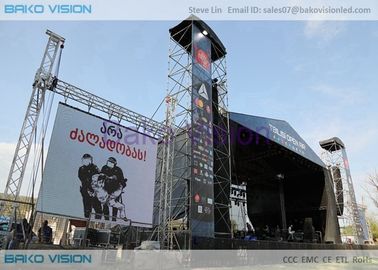

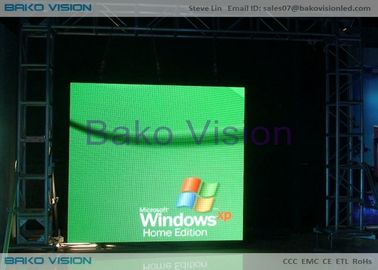

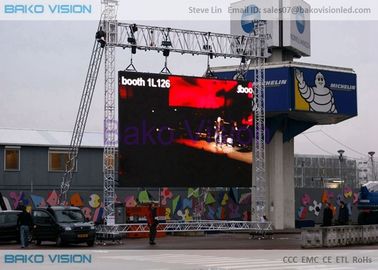

Outdoor Rental LED Display Cases:
Outdoor Rental LED Display Parameters:
BOR-I-3 | BOR-I-4 | BOR-I-5 | BOR-I-6 | |
Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
Pixel Density | 65536 pixels/m² | 43264 pixels/m² | 28224pixels/m² | 25600 pixels/m² |
Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 |
Panel Dimensions (mm) | 500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 |
500 × 500 × 80 500 × 1000 × 80 | 500 × 500 × 80 500 × 1000 × 80 |
NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
Physical Resolution of Module (W × H) | 64×64/64×128 | 52×52/52×104 | 42×42/42×84 | 40×40/40×80 |
Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
Average Power Consumption | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² |
Max Power Consumption | 225 /550 W/m² | 225 /550 W/m²l | 225 /550 W/m² | 225 /550 W/m² |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
Scan Method | 1/16 Scan | 1/13 Scan | 1/7 Scan | 1/10 Scan |
Outdoor Rental LED Display Description:
1.SMD 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving
2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span over 50000Hours

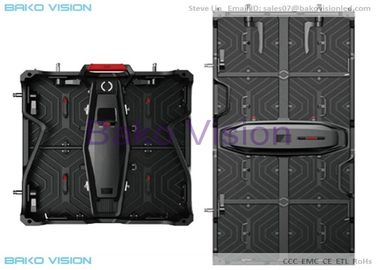

3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 28kgs per square meter, can be picked up by one hand, easy to install and dismantle, better for rental use,
4. Panel size can be 500x500mm or 500x1000mm,better for different screen sizes,and combine randomy
5. High brightness up to 5000nits,big view distance scope,good performance
6. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar
7. Dot to dot maintainance, quick maintain and save cost
8. No fans design, no noise caused, good environment protection
9. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
10. We have other outlooking design cabinets for P3.91,P4.81,P5.95 and P6.25,with different costs for customer's choosing,please contact us for details.
Outdoor Rental LED Display Applications:
Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |
Rental LED Display,LED Screen Hire,Die-casting Aluminum Cabinet,Electronics Display,Curve LED Display Screen,LED Sign Board,LED Message Board
Best Viewing Distance of Rental led display:
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
About us!
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
