Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.1mm | Pixel Configuration: | 1G1R1B |
|---|---|---|---|
| Module Size: | 280*210 | Module Resolution: | 108*81 |
| Module Array: | 9*2 | Screen Resolution: | 221,184 Pixels/set |
| Scan Mode: | 1/32 | Brightness: | 1000cd |
| Grey Scale: | 16bits | Refresh Rate: | 3960Hz |
| Highlight: | led poster screen,mirror led display |
||

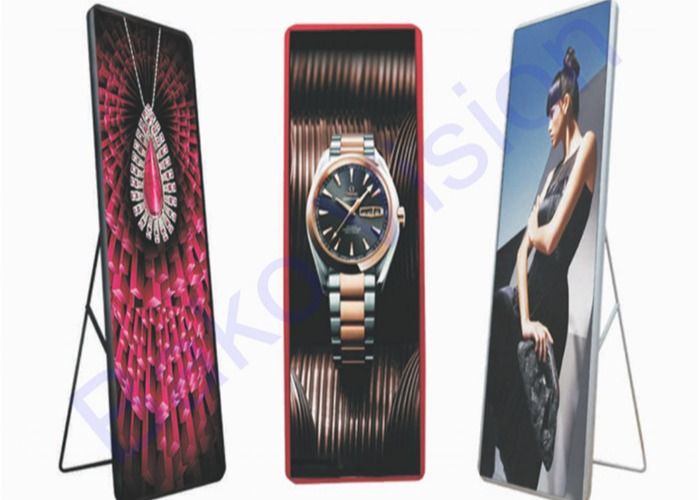

Indoor Digital Signage P2.1 LED Poster Display Sign For Message in Reception 15-BP-Tia.pdf
Indoor LED Poster Features
Perfect for retail, events, exhibitions and concerts reception etc

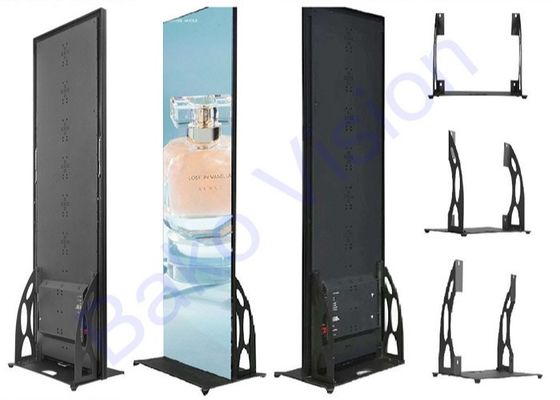

Offer base or base with wheels for easy transportation & installation
Support ethernet/WiFi/USB control via computer/phone
Plug & Play Solution with USB flash drive

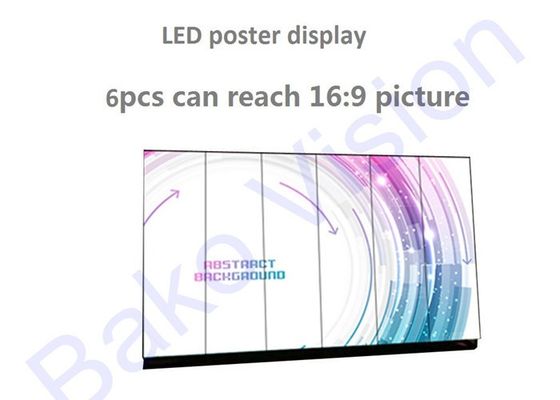

6PCS for16:9 Golden Ratio Screen
10PCS for HD 1080P Screen
Indoor LED Poster Parameters
| 1 | LED configuration | SMD1515 SMD 3-in-1 |
| 2 | Pixel pitch | 2.5mm |
| 3 | Module size | 280mm*210mm |
| 4 | Module resolution | 108X81 |
| 5 | Module arrangement | 9x2 |
| 6 | Capsulation | Kinglight |
| 7 | Screen resolution | 221,184 dot/unit |
| 8 | Brightness(nits) | ≥1100cd/m2 |
| 9 | Grey scale | 16bits |
| 10 | Constant Color Range | 281 trillion |
| 11 | Out of control points | ≤0.0001 |
| 12 | Best Viewing Angle | ≥3M |
| 13 | Viewing angle | horizontal:≥160° vertical≥160° |
| 14 | Scan mode | 1/32 Scan |
| 15 | Brightness adjustment | Manual programming and automatic with sensors |
| 16 | Frame change frequency | ≥60HZ |
| 17 | Refresh rate | ≥3960HZ |
| 18 | Control method | APP( WiFl) |
| 19 | Compatible | HDMI, SDI, S-Videom, MP4 |
| 20 | Life span | ≥80,000H. |
| 21 | Continuous working hours | >72H |
| 22 | IP level | IP40 |
| 23 | Working voltage | AC 240/100 ± 10%,50Hz/60Hz |
| 24 | Ambient temperature/humidity | temperature:-20ºC~+60ºC,humidity:10%-60% |
| 25 | Power Consumption(max/ave) | 400W/m2 ,120W/m2 |
| 26 | Maintenance | Rear(Back) |
| 27 | Screen Weight | ≤27KG/unit |
| 28 | Screen size(HxWxT) | 1920mmx570mmx33mm |
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2. How about the delivery time?
A: Normally, the time will be 25 working days more or less.
Q3: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q4: Do you offer guarantee for the led display products?
A: Yes, we offer two-five year warranty for our products.
