| Panel Size: | 500 X 1000mm | Physical Pitch: | P3.91, P5.2, P6.25, P8.9 |
|---|---|---|---|
| Bearing Weight: | 1.8 Tons | Brightness: | 2000nits - 4500nits |
| IP Rating: | IP65 | Weight: | 12/20kg Per Panel |
| Highlight: | led screen stage backdrop,concert led screen |
||

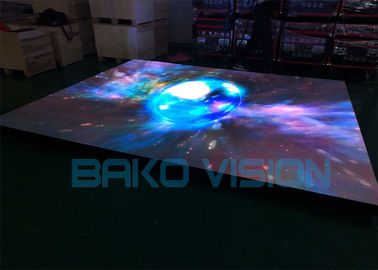

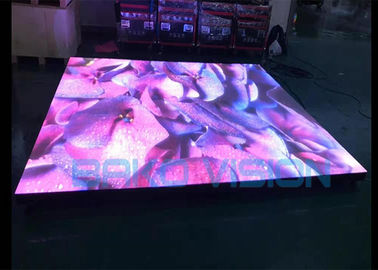

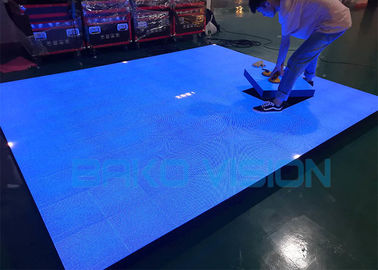

3.91mm Waterproof Dance Floor LED Screen Optional Interactive Effect
Description:

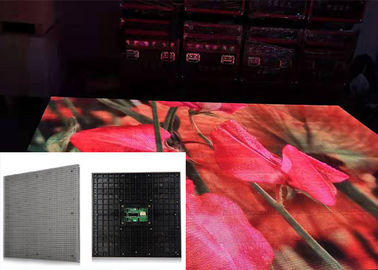

1) Aluminium precise cabinets :
500mm*500mm*73mm*12kg, durable, suitable for rent, easy & fast to install.
Buffering noise elimination and anti-slip waterproof, quiet fan-less design.
1,800kg/m2 high load support, transmit weight from surface to the stable structure directly (LED and PCB protected without damage)
Prevent vibration and deviations of LED modules sockets for reliability.
>1,920Hz refresh rate for flicker free performance, 12bit grey scale (RGB) for colour depth, optional interactive sensors.
>2,000cd/m2 (for indoor) or >4,000cd/m2 (for outdoor) brightness (adjustable), RGB full colour, 140deg/120deg view.
IP65 Waterproof for Outdoor, waterproof design of signal and power cable connections.
can be used for decoration, promotion, advertisements, stage LED interactive floor, wall background, TV studio shows, theatre, opera, events, clubs, bars, festivals, architectural spaces, exhibitions, concerts.
Parameters:
| BD-3 | BD-5 | BD-6 | BD-8 | |
| Physical Pitch | 3.91 mm | 5.2 mm | 6.25 mm | 8.928 mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3528 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) | 500 × 1000 | 500 × 1000 | 500 × 1000 | 500 × 1000 |
| NO.of Modules Per Panel (W × H) | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 |
| Physical Resolution of Module (W × H) | 64 x 64 | 48 x 48 | 40 x 40 | 28 x 28 |
| Physical Resolution of Panel (W × H) | 128 x 256 | 96 x 192 | 80 x 160 | 56 x 112 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 20 kg/panel | 25 kg/panel | 24 kg/panel | 25 kg/panel |
| ray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 300 W / m² | 300 W / m² | 300 W / m² | 300 W / m² |
| Max Power Consumption | 880 W / m² | 880 W / m² | 880 W / m² | 880 W / m² |
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | 2,500 nits | 2,000 nits | 4,500 nits | 4,500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Best Viewing Distance | 4m-60m | 6m-60m | 8m | 8m |
| Scan Method | 1 / 16 Scan | 1 / 6 Scan | 1 / 5 Scan | 1 / 3 Scan |
| Servicing | Front | Front | Front | Front |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 |
