| Physical Pitch: | P3, P4, P5, P6, P8 | Brightness: | >6,500 Nits |
|---|---|---|---|
| Servicing: | Front | LED Lamp: | Nationstar |
| Gray Scale: | 16 Bit | Panel Dimensions (mm): | 960 × 960 × 150mm |
| Highlight: | roadside led display,street led screen |
||
Outdoor Fixed Installation LED Display Commercial Billboard LED Video Wall IP65
Outdoor led display Description:
1. High Density,High Definition Full Color Screen - It's better for closer view with high density screen.
2. High Refresh Rate,High Scale Level - Much more vivid image display performance satisfies the commercial high visual quality requirements.
3. Dot-to-Dot Color and Brightness correction system - Dot-to-Dot correction system-on site large screen dot-to-dot correction processes on the picked spot where is suitable for audience,ensuring screen's higher uniformity when viewing from the suitable spot.
4. Support Multi-Media Play - Without transforming format, con directly paly video formats, like: RM,RMVB,MPET-1/2, DAT, AVI, DIVX,XVID,VOB,etc.
Outdoor LED Display Parameters:
| Pixel Pitch | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size | 250*250 | 320*320 | 256*256 | 320*320 |
| Cabinet Size | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Module Resolution | 52*52 | 48*48 | 32*32 | 32*32 |
| Cabinet Weight | 65/45kg | |||
| Cabinet Material | Steel/ Aluminum | |||
| Gray Scale | 16 bit | |||
| Contrast Ratio | 2000:1 | |||
| View Angle(H/V) | 160°/ 140° | |||
| Refresh Rate | >1920Hz | |||
| Brightness | >6500nits | |||
| IP Rating | IP65 / IP54 | |||
| Servicing | Front / Rear | |||
| Operating Temp/Humidity | -20ºC-50ºC / 10%-90% | |||
| Expected Lifetime | 100,000Hrs | |||
| Average Power Consumption | 360W/ Panel | |||
Outdoor LED Display Features:
1. Energy saving, saving money.
2. Low heat, low working temperature.
3. Long lifespan.
4. Low attenuation.
5. Black leds, high contrast ratio, the picture more clear.
6. High protection degree, IP65. Protect it from dust and water.
7. Stable performance. Adopted NovaStar control system and MEANWELL power supply.
8. Color Temperature is constant and the colorless block is used for a long time.

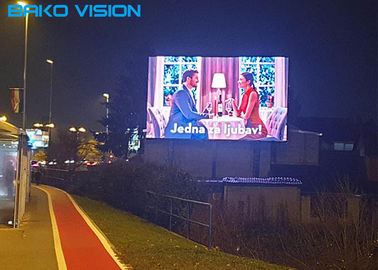

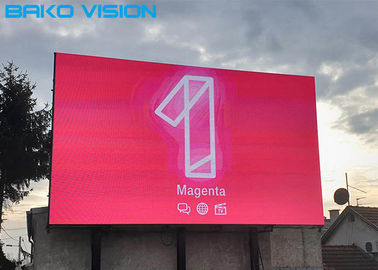

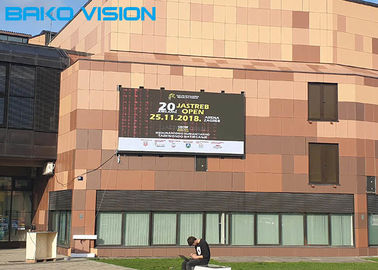

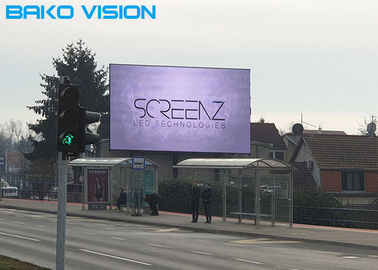

Outdoor LED Display Project References:
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ:
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. What is drive method, driving IC and power supply?
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
