Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD 3535 | Optional Models: | Outdoor P5,P6.67,P8,P10 |
|---|---|---|---|
| Panel Material: | Steel/ Aluminum | Screen Dimension: | Customized Size |
| Gray Scale (mm): | 16bit | Module Demensions (W*H)(mm): | 320 * 160mm |
| Refresh Rate: | >1920 Hz | ||
| Highlight: | roadside led display,outdoor waterproof led advertising panels |
||
P8/P10mm Full color Outdoor LED Screen display With High Brightness Fixed installation

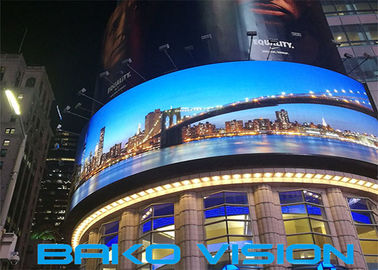

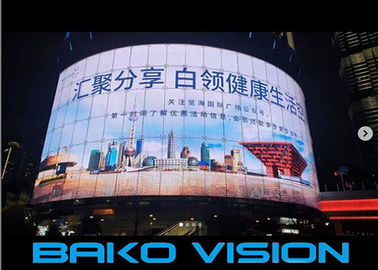

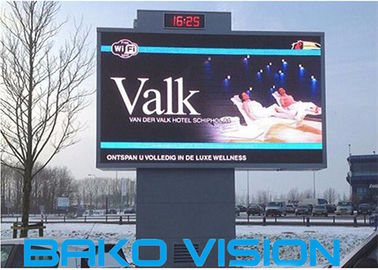

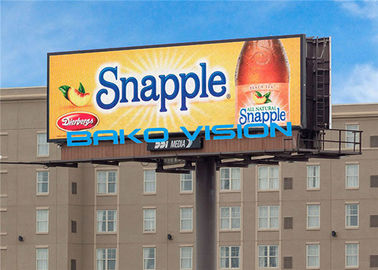

Outdoor fixed led display
With the continuous development and maturity of small-pitch technology, indoor and outdoor fixed display screen products begin to be small-pitch, with clearer resolution, higher refresh rate and higher color reduction, which can meet more high-end display needs.
Main Features:
1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
2.Safty Lock. Upgrated double safty lock design, double hanging lock and stable side lock.
3.The cabinet of unit moules asopts to high-temperature spraying technology, the antirust function is greatly improved.
4.High reliability
5.Cabinet Details
6. Field of application
Fixed installation outdoor led display p5 billboard digital led advertising screen is used in monitoring centers, dispatch centers, command centers, radio and television stations, auditoriums, electric classrooms, conference rooms, stadiums, shopping malls, hotels, supermarkets, and specialty stores.
Outdoor fixed led display Specifications, the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf
| BOF-8 | BOF-10 | |
| Physical Pitch | 8 mm | 10 mm |
| Pixel Configuration | SMD 3535 | SMD 3535 |
| Pixel Density | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*160 | 320*160 |
| Panel Dimensions(mm) | 960*960*150 | 960*960*150 |
| NO. of Modules Per Panel (W*H) | 3*6 | 4*6 |
| Physical Resolution of Module (W*H) | 32*32 | 32*32 |
| Physical Resolution of Panel (W*H) | 120*120 | 96*96 |
| Panel Material | Steel/ Aluminum | Steel/ Aluminum |
| Colors | 281 trillion | 281 trillion |
| Brightness | >6,500 nits | >6,500 nits |
| Weight (kg/m²) | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz |
| IP Rating | IP65/ IP54 | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel | 360/900W/ panel |
| Servicing | Front/Rear | Front/Rear |
| Scan Method | 1/4 Scan | 1/2 Scan |
Procesure Details
Perfect display performance
SMD3535 provides wider viewing angles and extremely close viewing distances.
IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓
IP65 rating
Brightness adjustable for day and night
Durable LED for 7/24 work mode
Energy-Saving Technology
Cutting dege"cold display" technology
60% power lower than normal
50% temperature less than normal
Outdoor fixed led Application Case
The Outdoor fixed LED screen in Malaysia with 1500 aquare meters.
The shopping mall with total construction area of 360,000 square meters, it not only the largest shopping park in Malaysia, but also has a Guinness World Recorded largest LED screen. It added lots of passion to this hot city.
Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our avantages:
