Product Details:
Payment & Shipping Terms:
|
| Cabinet Size: | 500x500mm/500x1000mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Contrast Ratio: | 4000 : 1 | Servicing: | Frong And Rear |
| Weight: | 7 / 13kg/panel | Application: | Touring Rental, Stage Rental, Car Show |
| Highlight: | mobile led display truck,led advertising trailer |
||
Hire Indoor LED Display Panel 160 Degree Viewing Angle Flat / Curve Video Wall
According to customer requirements and the sites environment, customize the most appropriate solutions.
Features:
1) Die-casting Aluminum
Ultra-thin-the box adopts die-casting aluminum molding, high strength, strong toughness, high precision, not easy to deformation, good heat dissipation.
2) Wonderful Stage Visual Effect
4000:1 contrast ratio, 16bit grey level, 1920~3840Hz Refresh Rate
3) Wide Viewing Angle
Ensure the wide viewing angle by tracking strictly on production process control and using good led lamp.
4) Fast Installation
Fast-cabinet upper and lower around the use of fast locking mechanism, 10 seconds to complete a cabinet installation, high installation accuracy.
5) Concave and Convex Screen
Flat and curve fast lock are both compatible on the same cabinet.
Parameters:
| BIR-I-2X | BIR-I-2 | BIR-I-3 | |
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147456 pixels/m² | 112896 pixels/m² | 65536 pixels/m² |
| Module Dimensions (W× H) (mm) | 500x125/500x125 | 250x250/250x500 | 250x250/250x500 |
| Panel Dimensions (mm) | 500x500x80 | 500x500x80 | 500x500x80 |
| 500x1000x80 | 500x1000x80 | 500x1000x80 | |
| NO .of Modules Per Panel (W × H) | 1X4/1X8 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 192x48/192x48 | 84x84/64x168 | 64x64/64x128 |
| Panel Material | 192x192/192x384 | 168x168/128x336 | 128x128/128x256 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 4000 : 1 |
| Average Power Consumption | 60/120W/m² | 60/120W/m² | 60/120W/m² |
| Max Power Consumption | 110/400W/m² | 110/400W/m² | 110/400W/m² |
| Operating Temperature | -10~60℃/10~60℃ | -10~60℃/10~60℃ | -10~60℃/10~60℃ |
| Storage Temperature | -30~60℃/10~60℃ | -30~60℃/10~60℃ | -30~60℃/10~60℃ |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | 900-1200 nits | 900-1200 nits | 900-1200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |

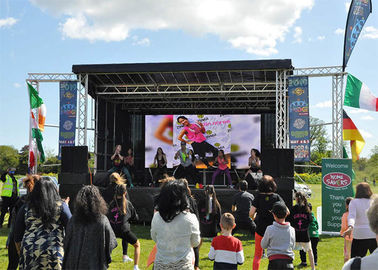

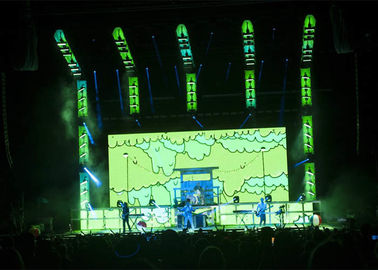

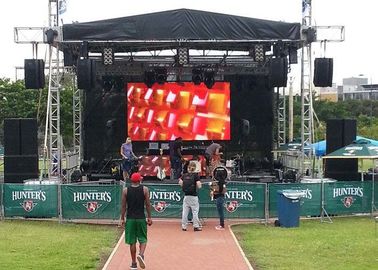

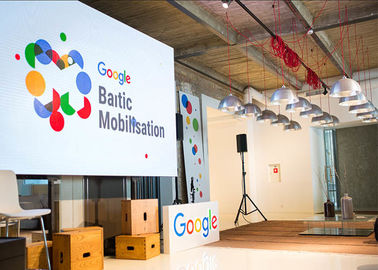

Application References:
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries
FAQ:
Q1: The warranty of your LED Display Board ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: Can I have a sample order for led module?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
