Product Details:
Payment & Shipping Terms:
|
| Module Dimensions (Wxh) (mm): | 240X240mm | Single Cabinet Weight: | 7 Kg/panel |
|---|---|---|---|
| Panel Dimensions (mm): | 480*480*80 | Panel Material: | Die-Casting Aluminum |
| Gray Scale: | 16 Bit | Contrast Ratio: | 4,000 : 1 |
| Brightness: | 1200 Nits | Refresh Rate: | > 2,880 Hz |
| Highlight: | stage led video wall,indoor led advertising scree |
||
Indoor Full Color HD Fixed LED Display Panel
P1.5, P1.6, P1.8, P2.5, P3 mm indoor is smallest pixel pitch. In general, we would use best IC with 2880Hz refresh rate because small pixel Led display module has higher request in quality and image effect. In addition, better SMT process and quality control are needed because every module have too many Led lamps and they are very expensive. We have enough good technology to produce best small pixel Led display modules.
Features
1. Small pixel pitch series, ultra high definition LED display, the high resolution brings delicate display effect.
2. Light weight, 7kg/panel, good flatness and Easy Maintenance.
3. 480*480mm cabinet with fast locks and handles to ensure fast installation and disassemble.
4. Seamless connection to ensure showing nice pictures, videos.
5.Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.
Parameter
| BHD-1.667 | BHD-2.5 | |
| Physical Pitch | 1.667mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2121 |
| Pixel Density | 360,000 pixels/m² | 160,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 240 × 240 | 240 × 240 |
| Panel Dimensions(mm) | 480 × 480 × 80 | 480 × 480 × 80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 144*144 | 96*96 |
| Physical Resolution of Panel(W*H)(mm) | 288*288 | 192*192 |
| Single Cabinet Weight | 7kg/panel | 7kg/panel |
| Average Power Consumption | 264 W/panel | 215 W/panel |
| Max Power Consumption | 680 W/panel | 640 W/panel |
| Brightness | 600-1000 nits | 600-1000 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >2,880 Hz | >2,880 Hz |
| Scan Method | 1/32 Scan | 1/32 scan |
Pruduct details
It can meet the differrnt demands of mobeable occasions with hanging bar or back brackets.
3. Lightweight to ensure convenient carry and transportation
4. High brightness and high refresh rate to ensure clear and nice pictures.
5. Wide Viewing angle to cover larger view range and attract more attention viewers.
Application

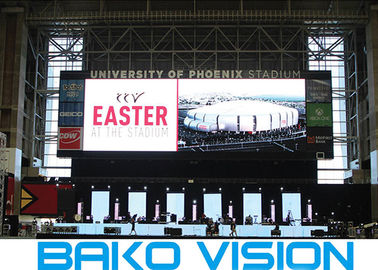

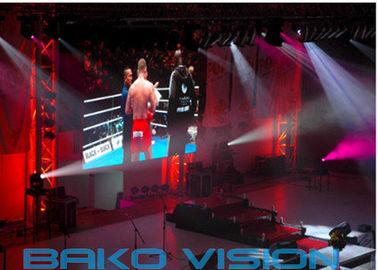

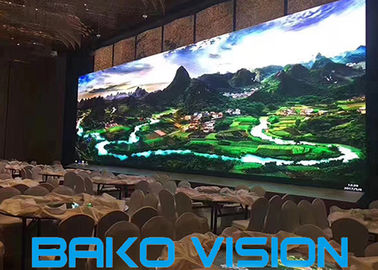

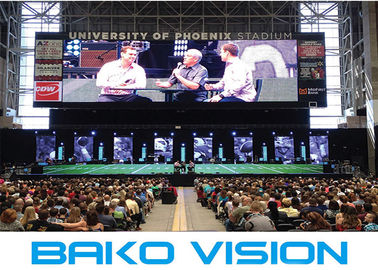

P1.579, P3mm LED Modules are applied Widely in Stadiums, Advertisement, Banks, Securities exchange, Stations,Shoping malls Postal officees, Schools, Monitoring, Restaurants, Entertainment, Enterprises etc.
Packing/ Shipping -Flight case/ By sea or by air
Our company
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
1.Goods be examined before delivery,Professional QC team
2.Variety of customized products to satisfy different requests.
3.Highest cost-effective price.
4.All inquiry will be answered within 24 hours by a well-trained and experienced staffs.
5.Top Quality & Reasonable Price & Responsible After Service
6.All private information will be well protected.
