Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 1024 × 768 Mm | Panel Material: | Die-casting Aluminum |
|---|---|---|---|
| Brightness: | 5500 Nits | IP Rating: | IP65/IP54 |
| Servicing: | Front/Rear | Pixel Pitch: | Frpm P2.6 To P12.8 |
| Highlight: | roadside led display,street led screen |
||
P6.4 Outdoor Fixed LED Display Digital Billboard for Advertising IP65 Weatherproof
1) One standard chassis 1024mmx768mm, covering pitches from 2.6mm to 10.6mm.
2) High protection grade enables it to be used in any outdoor harsh environment.
3) Aluminum cooling fin makes current distribution more even, which is helpful for better heat dissipation.
4) Easy and convinent maintenance is achieved by integrated power supply design.
5) Innovative fast-lock and front accessible design both facilitate the whole maintenance process.
Parameter:
| BDF-2 | BDF-6 | BDF-12 | |
| Physical Pitch | 2.6mm | 6.4mm | 12mm |
| Pixel Configuration | SMD1617 | SMD2727 | SMD2727 |
| Pixel Density | 141376 pixels/m² | 24414 pixels/m² | 6103 pixels/m² |
| Module Dimensions (W× H) (mm) | 512X256 | 512X256 | 512X256 |
| Panel Dimensions (mm) | 1024X768X100 | 1024X768X100 | 1024X768X100 |
| NO .of Modules Per Panel (W × H) | 2X3 | 2X3 | 2X3 |
| Physical Resolution of Module ( W× H) | 192x98 | 80X40 | 40x20 |
| Physical Resolution of Panel ( W× H) | 394X294 | 160X120 | 80x60 |
| Single Cabinet Weight | 35 kg | 35 kg | 35 kg |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000 : 1 | 2000:1 / 4000:1 | 2000:1 / 4000:1 |
| Average Power Consumption | 240W/Panel | 240W/Panel | 350W/m² |
| Max Power Consumption | 600W/Panel | 600W/Panel | 700W/m² |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | >2500 nits | >5500 nits | >5500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Operating Temperature | -20~60℃/10~90℃ | -20~60℃/10~90℃ | -20~60℃/10~90℃ |
| Storage Temperature | -30~60℃/10~90℃ | -30~60℃/10~90℃ | -30~60℃/10~90℃ |
| Scan Method | 1/24 Scan | 1/5 Scan | 1/2 Scan |

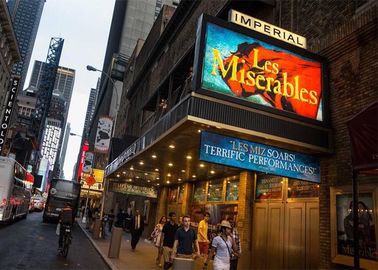

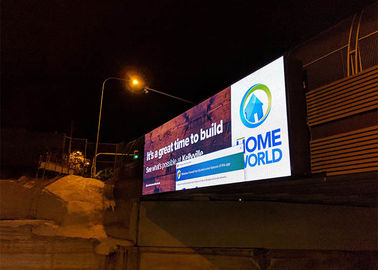

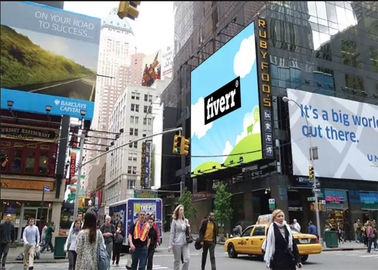

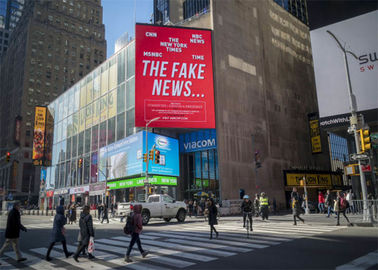

Cases:
Our Service:
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.
