Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P2.6 P2.97 P3.91 P4.81 | Material: | Die-casting Aluminum |
|---|---|---|---|
| Grey Level: | 16 Bit | Servicing: | Frong And Rear |
| Weight: | 8 / 14kg/panel | Application: | Touring Rental, Stage Rental, Car Show |
| Highlight: | indoor full color led display,led publicity screens |
||
1200Nits Indoor LED Display for Stage Rent 1920Hz Floor Screen Available
Features:
1) High Refresh Rate
1920Hz ~ 3840Hz with MBI5124 / MBI5252.
2) High Contrast
Matt-mask design to make sure the high gray-contrast.
3) Wide Viewing Angle
Ensure the wide viewing angle by tracking strictly on production process control and using good led lamp.
4) Noise Free
Each individual module stores calibration and operating parameters separately.
With a push-out module and identical design, maintenance is a breeze.
5) Concave and Convex Screen
Flat and curve fast lock are both compatible on the same cabinet.
6) Floor Screen Available
Durable PC mask and adjustable foot bracket are ready for floor screen.
Parameters:
| Physical Pitch(mm) | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² |
| Module Dimensions (W × H) (mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions (mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| No. of Modules Per Panel (W × H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
| Physical Resolution of Module (W x H) | 96*96 | 84*84 | 64*64 |
| Physical Resolution of Panel (W x H) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel | 8/14 kg / panel | 8/14 kg / panel |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 400 W / m² | 400 W / m² | 325 W / m² |
| Max Power Consumption | 800 W / m² | 800 W / m² | 780 W / m² |
| Operating Temp/Humidity | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |

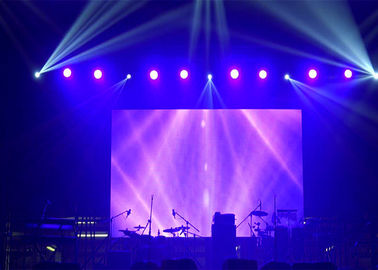

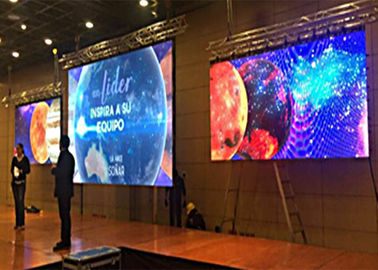

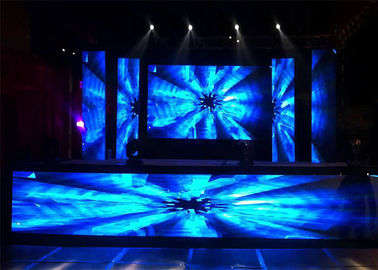

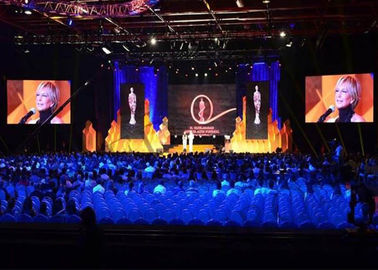

Project Reference:
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
