Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD 3535 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 11 Years | Module Demensions (W*H)(mm): | 192*192 |
| Panel Dimensions (mm): | 960*960 | IC: | Mbi5153, Mbi5124 |
| Panel Material: | Steel/ Aluminum | Power Suppy: | Meanwell Or G-Energy |
| Highlight: | roadside led display,outdoor waterproof led advertising panels |
||
High Definition SMD P10 LED Video Screen Outdoor Advertising Digital Billboard
Outdoor Advertising Main Description
Module Dimensions (W*H)(mm): 320*320 / 192*192mm
Weight (kg/m²): 65/45
Servicing : Front / Rear
SMD2727 Nationstar offer excellent view effect of video & image.
High brightness with over 6500nits.
Outdoor Advertising Advantages:
1. P10, SMD 3535 packaging, a large angle of view, power consumption, color uniformity, low failure rate.
2. Standardized design
Standardized module and cabinet for the outdoor fixed series, including P5, P6,P8 and P10 outdoor led display, reducing the delivery time and saving the maintenance cost for the advertisers.
3. Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
4. Low power comsumption. The working voltage is 5V, which is very safe to use. Reducing the voltage to receive energy saving between 40% and 20%
Outdoor Advertising Specifications,the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf
| BOF-10 | |
| Physical Pitch | 10 mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 |
| Physical Resolution of Panel (W*H) | 128*96 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Outdoor Advertising Procesure Details
Front/Rear Maintenance
For outdoor adverts led screen,
we also offer front maintenance solution.
You can take modules and all other parts
out from front with one screwdriver.
We provide synchronous or asynchronous operating systems, you have the flexibility to choose your way.You could push the image or words into a global screen and monitor it in the office .Of course, no matter the brightness or the playing contents can also be adjusted.You can remotely control the brightness of the screen, as well as the content and time it plays.

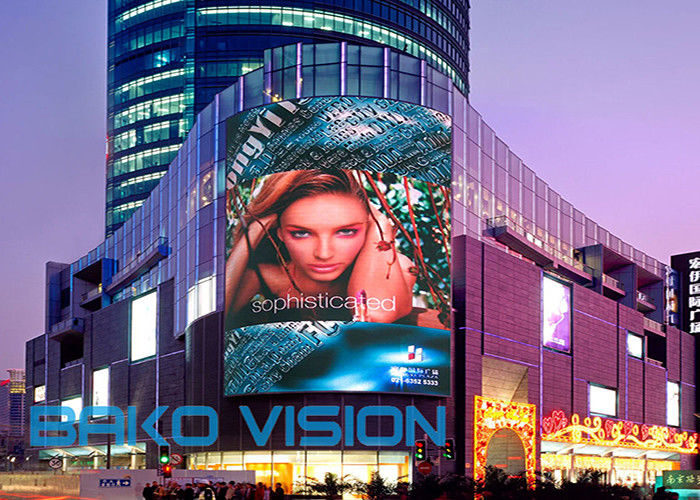

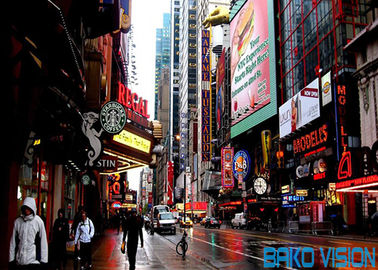

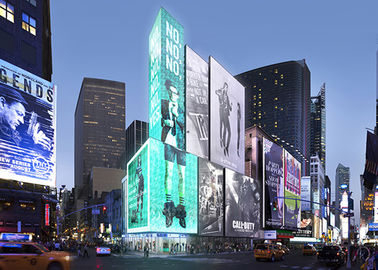

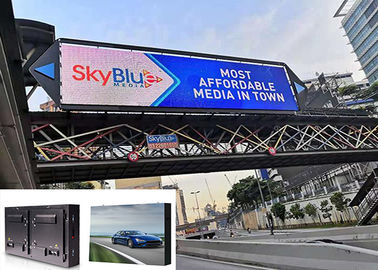

Outdoor Advertising Widely Application:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Quality assurance
