Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Steel/Aluminum | Brightness: | >6,500 Nits |
|---|---|---|---|
| Servicing: | Front/Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
| Highlight: | street led screen,outdoor waterproof led advertising panels |
||
Waterproof High Refresh Outdoor Advertising LED Display Full Color Fixed Installation
Quick detail
Conventional DOOH Display
Stable and Durable
Mechanical Front Access
Concave,Convex with Any Angle
Products Description
1. No flat cable design, quality is more stable and it looks very neat inside, with a fan inside, good for heat dissipation
2. IP65 standard, good for outdoor use
3. High brightness, over 6500nits, can work well in day time under direct sunshine
4. Higher refresh rate: Over 2000Hz/s, no scan line
5. High resolution, can reach 62500pixels/sq. M.
6. Die-casting aluminium cabinet, Durable & stable LED display.
7. Normally we use CREE LED from USA or Epistar LED from Taiwan
8. MBI5020, MBI5124, MBI5041, MBI5050 are optional
9. We offer 2-3 Years warranty
Specification
| BOF-4 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm |
| Pixel Configutation | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density | 43,264pixels/sqm | 22,500pixels/sqm | 15,625pixels/sqm | 10,000 pixels/sqm |
| Module Dimention(W*H)(mm) | 250*250 | 320*320 | 256*256 | 320*320 |
| Panel Dimention(mm) | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Physical Resolution of Module(W*H) | 52*52 | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel(W*H) | 208*208 | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(kg/㎡) | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 360W/panel | 360W/panel | 360W/panel | 360W/panel |
| Max Power Consumption | 900W/panel | 900W/panel | 900W/panel | 900W/panel |
| Brightness | >6,500nits | >6,500nits | >6,500nits | >6,500nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |

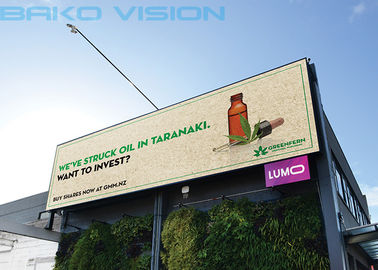

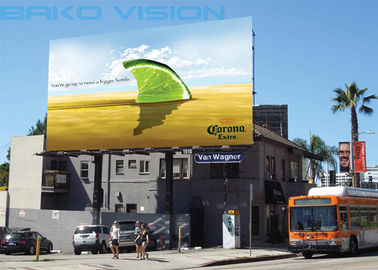

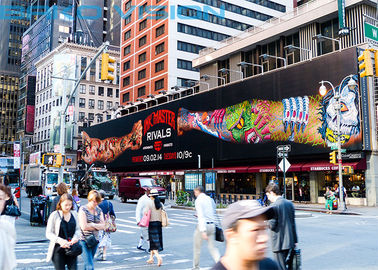

Application
Features
Our Advantages
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality:All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
Installation
Case
Service
Packaging and Shipping
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
