Product Details:
Payment & Shipping Terms:
|
Panel Material: | Steel/Aluminum | Brightness: | >6,500 Nits |
---|---|---|---|
Servicing: | Front/Rear | IP Rating(Front/Rear): | IP65/IP54 |
Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
Highlight: | street led screen,outdoor waterproof led advertising panels |
High Brightness LED Billboard Full Color P10 Outdoor Fixed Advertising LED Display Screen
Quick detail
Conventional DOOH Display
Stable and Durable
Mechanical Front Access
Concave,Convex with Any Angle
Products Description
With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
The advertising contents can be changed at any time, for different customers and various advertisements.
With loop backup System to ensure stability and reliability of wole led screen system, when any fails, control system will automatically switch to hot backup without flashing and dark on the display.
With high efficient optical fiber transmission system, it can reduce signal delay caused by long transmission distance, which ensure the consistency of the display.
You can control all display information by remote network, and change the screen information by clicking the mouse, in order to achieve the network clustering of urban and regional ads.
It supports network control function, allowing you to control the displays of several cities in one place to change the contents at any time.
With environmental monitoring systems, you can know the display operation anytime, anywhere.
With multi-function card, it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function
Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Specification
BOF-4 | BOF-6 | BOF-8 | BOF-10 | |
Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm |
Pixel Configutation | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
Pixel Density | 43,264pixels/sqm | 22,500pixels/sqm | 15,625pixels/sqm | 10,000 pixels/sqm |
Module Dimention(W*H)(mm) | 250*250 | 320*320 | 256*256 | 320*320 |
Panel Dimention(mm) | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
Physical Resolution of Module(W*H) | 52*52 | 48*48 | 32*32 | 32*32 |
Physical Resolution of Panel(W*H) | 208*208 | 192*144 | 160*96 | 128*96 |
Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
Weight(kg/㎡) | 65/45 | 65/45 | 65/45 | 65/45 |
Processing | 16bit | 16bit | 16bit | 16bit |
Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
Average Power Consumption | 360W/panel | 360W/panel | 360W/panel | 360W/panel |
Max Power Consumption | 900W/panel | 900W/panel | 900W/panel | 900W/panel |
Brightness | >6,500nits | >6,500nits | >6,500nits | >6,500nits |
Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
Vertical Viewing Angle | 160° | 160° | 160° | 160° |
Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |

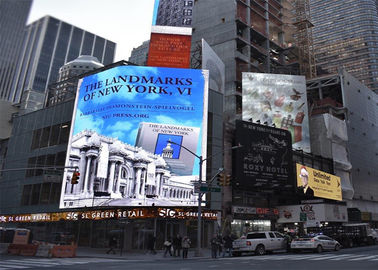

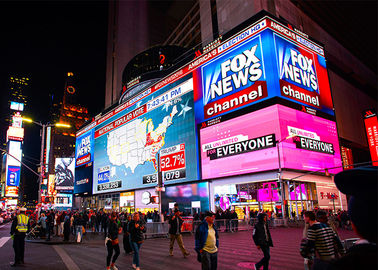

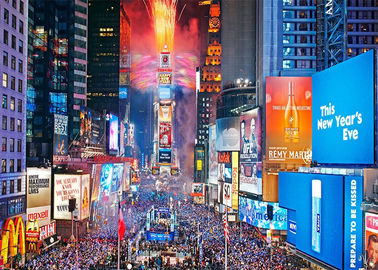

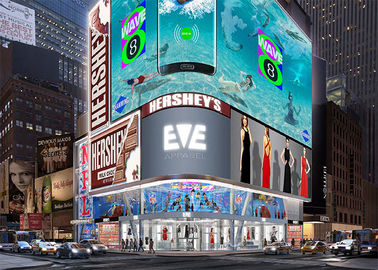

Application
Features
Our Advantages
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality:All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
Installation
Case
Service
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.
