Product Details:
Payment & Shipping Terms:
|
| Module Dimensions (Wxh) (mm): | 250X250mm | Operating Temp/ Humidity: | -10℃-60℃/ 10℃-60℃ |
|---|---|---|---|
| Contrast Ratio: | 4000:1 | Panel Material: | Die-Casting Aluminum |
| Lamp: | Nation Star/ Kinglight | Brightness: | >1200 Nits |
| Life Span: | 100,000 Hrs | IP Rating (Front/ Rear): | IP40/ IP21 |
| Highlight: | indoor full color led display,indoor led billboard |
||
Indoor Rental Quick Detail:
1. Die Casting Aluminumn, good heat dissapation.
2. Perfect quality and stability, 24/7 running
3. Front or Rear Access Service
4. Refresh Rate: > 1920 HZ, 2 years warranty
5. Long lifespan up to 100,000 hours
6. IP Rating (Front / Rear), IP40/ IP21
Indoor Rental Features:
1. High contrast rate up to 4000:1 by using good quality LED, vivid picture.
2. High refresh rate with NOVA control system,no scaning line when photographed.
3. Ultrathin and lightweighted,The ultra thin and lightweighted design makes it easy to transport and install.
4. Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
5. User-friendly design with fast locks, more convenient & fast to install and dismantle.
6. 16 bit color, 281 trillion, showing very clear and vivid video and images.
7. Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Indoor Rental Parameter
| BIR-III-2.97 | BIR-III-3.91 | BIR-III-4.81 | |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 168*168 / 168*336 | 128*128 / 128*256 | 104*104 / 104*208 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 64/128W/panel | 4/128W/panel | 64/128W/panel |
| Max Power Consumption | 192/384W/panel | 192/384W/panel | 192/384W/panel |
| Brightness | 1200 nits | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | 0ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Pruduct details
High permeability, elegant sound and shadow: With the fence type design and high quality SMD technology, LED rental displays show its high penetration rate. Which fully meet the video stage lighting, ventilation and sound transmission demand to create perfect video effect.
Packing / Deliver

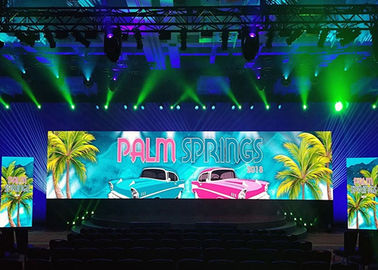

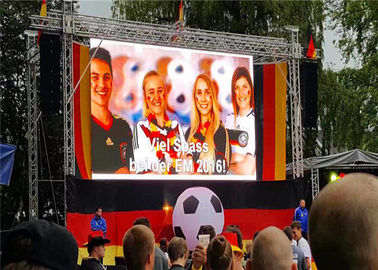

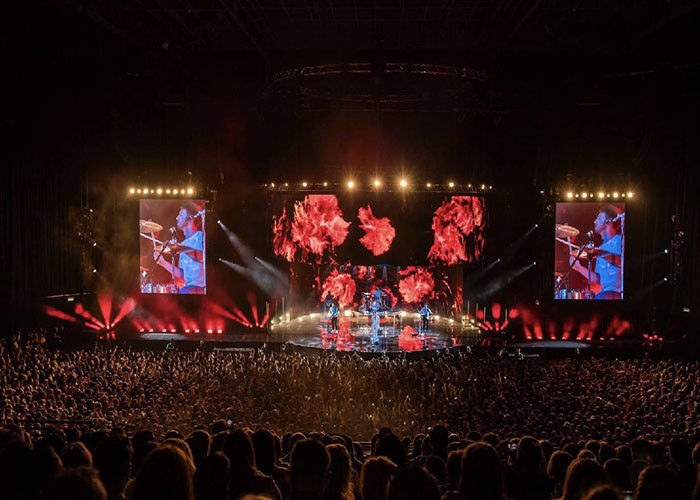

Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
