Product Details:
Payment & Shipping Terms:
|
| Module Dimensions (Wxh) (mm): | 250X250mm | Average Power Consumption: | 64/128W / Panel |
|---|---|---|---|
| Contrast Ratio: | 4000:1 | Panel Material: | Die-Casting Aluminum |
| Lamp: | Nation Star/ Kinglight | Control System: | Nova, Linsen |
| Life Span: | 100,000 Hrs | IP Rating (Front/ Rear): | IP40/ IP21 |
| Highlight: | indoor full color led display,indoor led billboard |
||
HD Video P3.91/ P4.81 Indoor Rental Full Color LED Display with 2 Years Warranty
Full Color LED Display Adventages:
· High-quality bright LED dot matrix module with painted ink color evently is not easy to be damaged and ensures the best viewing angle
· Constant voltage chip driving reduces the power consumption and prompts the stability. Simple modular design is low cost and easy to maintain
· Can undertake single point, single lamp maintenance and the cost is low.
· Neat appearance, light weight, small size and safe 5V low voltage power supply system all make the module more attractive.
· Besides, high definition effect comes with uniform luminance and soft color is suitable for indoor range viewing closely.
· Temperature:-10°-+60°. Humidity:≤60%. MTBF:≥10,000houes. Lifespan:≥100,000hours. Defective,Dot Rage<0.0001.
Full Color LED Display Products features
1. Fast assembling: User-friendly design with fast locks, more convenient & fast to install and dismantle.quick lock makes cabinet assembly easy and fast, only 20 seconds.
2. Two size you can choose:500*500mm or 500*1000mm,it is easy to calculate the area
of led screen
3. Power supplies and receiving cards can be replaced separately and quickly, even in 1 second.
4.The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
5. Neat appearance, light weight. small size and safe 5V low voltage power supply system all make the module more attractive.
Full Color LED Display Parameter (Click on this and you will get the catalogue►5-Indoor rental led display.pdf)
| BIR-III-3.91 | BIR-III-4.81 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128 / 128*256 | 104*104 / 104*208 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 64/128W/panel | 64/128W/panel |
| Max Power Consumption | 192/384W/panel | 192/384W/panel |
| Brightness | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
Full Color LED Display Pruduct details
High refresh rate, high gray level: It can reach 16bit by using PWM driving IC, refresh rate is more than 1920HZ, the gray level is still high even under the condition of low brightness.
Color correction: support dot-to-dot correction, guarantee the consistency of LED color and brightness, No chromatic aberration for new screens.
Packing detail

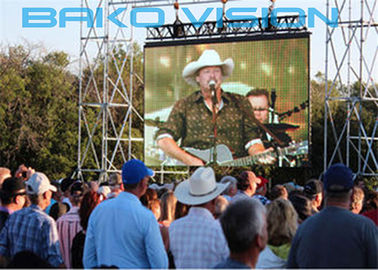

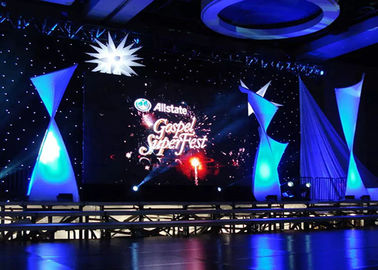

Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Our service:
1. Your inquiry about our products or price will be replied in 24hrs.
2. OEM&ODM, any of your customized requirement we can help to design and put into product.
3. Distributorship are offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. Top quality + Reasonable price + Responsible After Service=Successful & Win-Win.
6. SENY can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
FAQ:
Q1:Can you tell me why I should choose your company ?
A1:Concentration makes professional .Professional achieves successful .
Our Bako vision have 14 years professional led technical experience .we have our own factory, we are largely expanding our international market.From 2005 to 2019, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .
Q2:What's the warranty of your LED Display ?
A2: 2-5 years warranty .and 100,000hrs life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
Q3: What's your payment term? How long is your delivery time ?
A3: We accept T/T ,L/C,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.
