Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Steel/Aluminum | Brightness: | >6,500 Nits |
|---|---|---|---|
| Servicing: | Front/Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
| Highlight: | roadside led display,outdoor waterproof led advertising panels |
||
SMD/DIP Outdoor LED Display for Advertisign Custom Size Fixed LED Billboard
Quick detail
Conventional DOOH Display
Stable and Durable
Mechanical Front Access
Concave,Convex with Any Angle
Specification
| BOF-4 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm |
| Pixel Configutation | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density | 43,264pixels/sqm | 22,500pixels/sqm | 15,625pixels/sqm | 10,000 pixels/sqm |
| Module Dimention(W*H)(mm) | 250*250 | 320*320 | 256*256 | 320*320 |
| Panel Dimention(mm) | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Physical Resolution of Module(W*H) | 52*52 | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel(W*H) | 208*208 | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(kg/㎡) | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 360W/panel | 360W/panel | 360W/panel | 360W/panel |
| Max Power Consumption | 900W/panel | 900W/panel | 900W/panel | 900W/panel |
| Brightness | >6,500nits | >6,500nits | >6,500nits | >6,500nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Description
Application
Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;
Features
√ SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity.
√ Slim and small cabinet iron and aluminium.
√ Flight or plywooden case package,convenient to transport and collect,easy to move and good protection.
√ Fixed installation and Rental design, easy to install and dismantle,save much time for installation and maintainance.
√ Fixed installation, Seamless spliced,good outlooking
√ Good heat dissipation
√ Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
Control
Our Advantages
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality:All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.

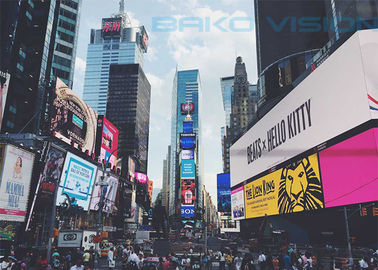

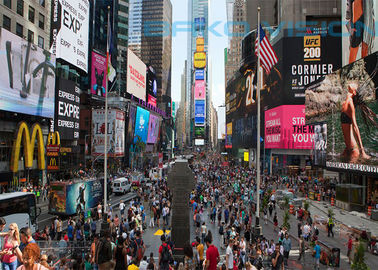

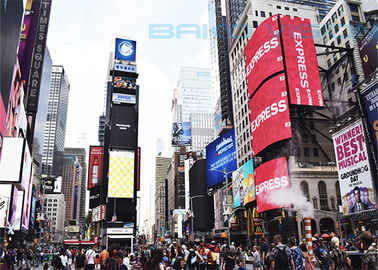

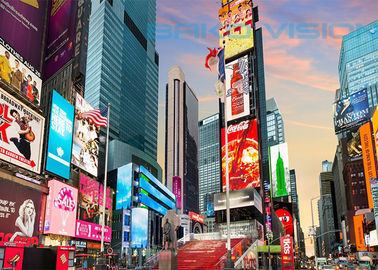

Case
Service
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.
Packaging and Shipping
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
