Product Details:
Payment & Shipping Terms:
|
| Cabinet Material: | Die-casting Aluminum | Panel Dimention: | 500*500*80/500*1000*80 |
|---|---|---|---|
| Brightness: | >6,000nits | Contrast Ratio: | 4000:1 |
| Usage: | Outdoor | Screen Dimension: | 500*500 / 500*1000mm |
| Warranty: | 2 Years | Life Span: | 100000hours |
| Highlight: | outdoor led screen hire,events led display |
||
P3.91 P4.81 LED Panel for Advertising 500*500mm Indoor/Outdoor Rental LED Display
Quick Detail
Slim and Large Format Cabinet
Ideal for Touring Application
High Definition Outdoor Display
Curvilinear,Concave,Convex
Product Description
√ Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
√ Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm), greatly saves transportation costs and labor costs
√ Rental die-casting aluminum structure: rock solid, not easy to deform
√ Seamless splicing : give you a better visual experience
√ Quick lock system, easy installation : quick installation, complete the installation in a few seconds
Product Specification
| BOR-III-3 | BOR-III-4 | BOR-III-5 | BOR-III-6 | |
| Physical Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 65,536 pixels/㎡ | 43,264 pixels/㎡ | 28,224 pixels/㎡ | 25,600pixels/㎡ |
| Module Dimensions (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 64*64 | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H) | 128*128/128*256 | 104*104/104*208 | 84*84/84*168 | 80*80/80*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/500W/panel | 225/500W/panel | 225/500W/panel | 225/500W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >6,000nits | >6,000nits | >6,000nits | >6,000nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Product Features
1.High Definition,wonderful visual performance.
2.High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
3. High resolution could guarantee superior performance even with small screen size.
4.High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
5. Super wide viewing angle can be visible in most corners, give you visual enjoyment.
6.SMD technology could guarantee higher flatness and better performance.
7. Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
8. Low power consumption and fast heat dissipation with dual channel heat dissipation
9. Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.
Our Advantages
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality:All products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.

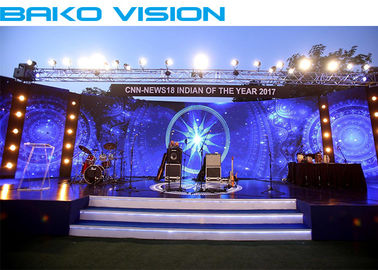

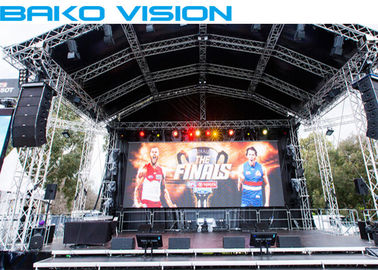

Case
Color Gamut
Service
BAKO has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Packaging and Shipping
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding enterprises (Stock Code: 871745), focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
