Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD3535 | Control System: | Novastar |
|---|---|---|---|
| IP Rating: | IP65/IP54 | Servicing: | Front/Rear |
| Viewing Angle: | 160°/140° | Brightness: | ＞6500nits |
| Highlight: | street led screen,outdoor waterproof led advertising panels |
||
P8 P10 Outdoor LED Advertising Billboard Screen
P8 P10 Outdoor LED Advertising Billboard Screen Specification
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /㎡ | 360 W /㎡ |
| Max Power Consumption | 900 W /㎡ | 900 W /㎡ |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
Features
1. IP65 rating for front, it can be suitable for any weather with good condition.
2. High brightness and brightness adjustable for outdoor day and night. You can see the video clear in sunny day with vivid color.
3. Fast installation and easy maintenance. You can install and maintance the module from front. It's easy and fast.
4. Multifunctional module bucks designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
5. Intelligent control and player system by cloud technology.
6.Resolution can be adjusted by changing modules directly. No need to change other thing

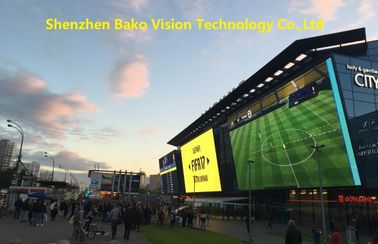

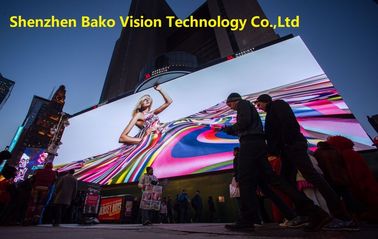

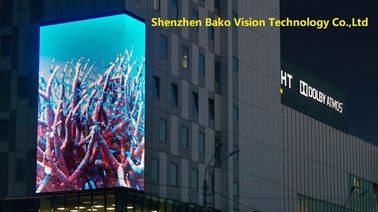

Case
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
