Product Details:
Payment & Shipping Terms:
|
| LEDs: | Nationstar | Pannel Material: | Steel/Aluminum |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65/IP54 |
| Highlight: | mobile led display truck,truck mounted led screen |
||

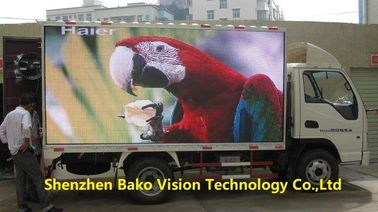

Outdoor Stable Led Screen on Moving Car/Truck For Advertising and Billboard
Quick Details:
1, Pixel Pitch: 4.81mm.6.67mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 960 X 960 x 150mm, cabinet weight:40kg.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5m.
Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 4.81mm,6.67mm,8mm are the most hot-selling and highest cost-effective series.
Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
Specification
| BOF-4 | BOF-6 | |
| Physical Pitch | 4.81mm | 6.67mm |
| Pixel Configuration | SMD2727 | SMD2727 |
| Pixel Density | 43,264 pixels/Sqm | 28,224 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 250 x 250 | 320 x 320 |
| Panel Dimensions (mm) | 1000 x 1000 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 4 x 4 | 4 x 3 |
| Physical Resolution of Module (W x H) | 52 x 52 | 48 x 48 |
| Physical Resolution of Panel (W x H) | 208 x 208 | 192 x 144 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /panel | 360 W /panel |
| Max Power Consumption | 900 W /panel | 900 W /panel |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
Case
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
