Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 31.25mm/15.625mm | Expected Lifetime: | 100,000Hrs |
|---|---|---|---|
| Pannel Material: | Aluminum | Servicing: | Front/Rear |
| IP Rating(Front/Rear): | IP67 | Refresh Rate: | ＞3840Hz |
| Brightness: | ＞6500nits | Average Power Consumption: | 107W/㎡ |
| Weight: | 15kg/per Square Meter | Size Of Cabinet: | 500 X 1000mm |
| Highlight: | transparent glass led display,see through led screens |
||

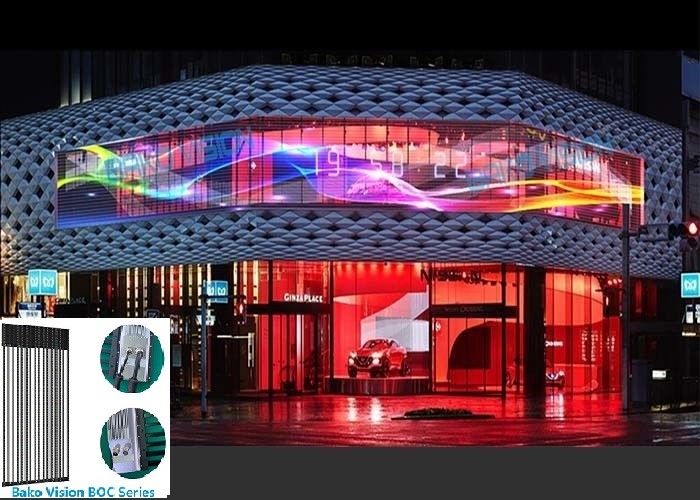

High Transparency Lower Consumption Outdoor Curtain LED Screens 6500 Nits
Features:
1. Good visualization: Glass based design allows the light to pass through the glass without any influence to the building structure around..
2. Ultra-thin, and ultra-light. With only 8mm width and 15kg/m2 weight, the installed glass display takes very little space and without any increase in the glass wall loading weight.
3. Frameless structure Asram glass display can directly stick to the inside part of the glass wall by special designed glue, and after 10 seconds curing, it will connect with the glass wall firmly. Thus decrease the installation difficulty and cost greatly.
4. Easy and convenient maintenance. It can be maintained from inside, safer and more convenient.
5. Saving lighting costs of the whole building. Besides good advertising effect, Bako Vision LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6. Wide use range. Wherever the glass wall is, Bako Vision glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
Specification:
| BOC 31/15 | |
| Model number | BKV-31/15 |
| Pixle Pitch | 31.25 / 15.625mm |
| Size of Pixel | DIP346 |
| Pixel Configuration | 1R1G1B |
| Size of Block Module | 10mm x 1000mm |
| Resolution of Module | 64 x 1 |
| Module Power | 12W |
| Pixel Density | 2048 Dot/Sqm |
| Cabinet Material | Alu Cabinet |
| Size of Cabinet (L*H/mm) | 500 x 1000 |
| Weight of Cabinet | 7.5KG |
| Support Hanging or not | Yes |
| Best Viewing Distance | ＞15m |
| Average Power Consumption | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm |
| Brightness | 10000 CD/Sqm |
| Transparency | 70% |
| Scanning Method | Static Scanning |
| Refresh Rate | 3840 Hz |
| Best Viewing Angle | ≤140 Degree |
| Colors | ＞16.7M |
| Gray Scale | 16bit |
| Color Temperature | 6500K |
| Control Method | Synchronization |
| Driving Device | Constant current |
| Frame Frequency | 60HZ |
| Brightness Control | 256 grade |
| IP Rating (Front/Rear) | IP 65 |
| Expected Lifetime | 100,000 Hrs |
| Refresh Rate | ≥3,840 Hz |
| Horizontal Viewing Angle | 120° |
| Vertical Viewing Angle | 60° |
| Expected Lifetime | 100,000 Hrs |
Case:
Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
