Product Details:
Payment & Shipping Terms:
|
| Cabinet Size: | 500x500mm | Panel Material: | Die-casting Aluminum |
|---|---|---|---|
| Pixel Configuration: | SMD2121 | Warranty: | 2 Years |
| Expected Lifetime: | 100000 Hours | Module Size: | 250x250mm |
| Highlight: | led publicity screens,indoor led billboard |
||
Indoor High Refresh Rate SMD Led Display Panel P3.91 P4.81 1920Hz For Stage
P3.91 indoor led Screen ( 500mm X 500mm or 500x1000mm)
CE certificate from TUV
Reddot Award 2017
Slim & Lightweight design
The cabinet is slim and rear design is the smooth-edged surface that makes you handle safely.
Innovative handle
The handle is innovative, grip and wide for easy handling.
UI LCD display
The rear box has an LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage.
Power and signal lamps indicate cabinet status.
Dual data connection
There is optional data connecting port on cabinets under a rear box, you can use it if standard one fails.
No flat & power cable on the module
Everything is connected with pin type socket. The Cable-free design makes it fast for installation and stable in data/power transmission.
Strong Locks for hanging installation
The cabinets locks are smooth-edged, easy handling and strong that you can hang up many cabinets in the same row.
Fast assembling & disassembling
No tools are required for installation of the screen.
500*500 mm cabinets and 500*1000 mm cabinets can connect together easily.
Specifications:
| Model | BIR-I-2 | BIR-I-3 | BIR-I-4 | BIR-I-6 |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 112896 pixels/m² | 65536 pixels/m² | 43264 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W× H) (mm) |
250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 84*84/64*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |
| Panel Material | 168*168/128*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel |
| Max Power Consumption | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Certification | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL |

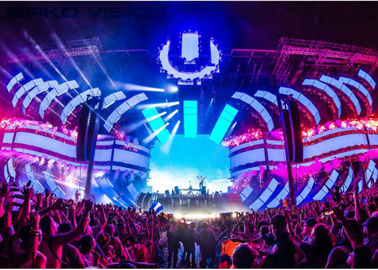

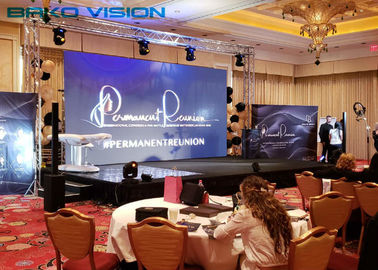

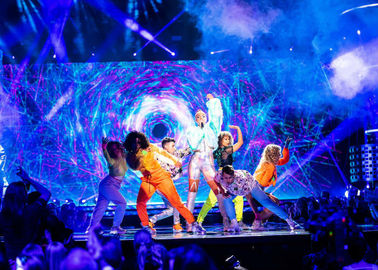

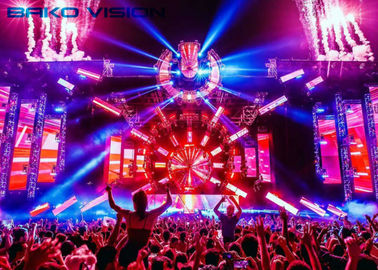

Case:
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a high-tech science & technology enterprise
of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team, we are always open
and been proficient in breaking the new model and tooling for customized solutions as well as creative products.
FAQ:
Q1. Are you a trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, L/C, Western Union or others
Q3. Do you provide samples ? is it free?
A: We can provide the sample if we have ready parts in stock, but the customers need to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
Why Choose us:
1.Well-experienced: Bako Vision started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens. And every sales team leader has been working in LED display industry over 10 years.
2. Quality Assurance: Equipped with multiple SMT lines and DIP lines and high-speed machines, imported from Panasonic and Samsung. The quality management complies with 7S and ISO9001-2000/ISO14001 product certification systems. At the same time, our products have obtained CCC, CE, ETL, RoHS, FCC, UL.
3. Capacity status: The company's monthly production capacity has reached 800 KK, take P3.91 as an example, it can produce 15,000 square meters per month.
4. After-sales support: The company has set up an after-sales service department. There are many professional technicians engaged in the engineering installation, on-site debugging and training guidance of LED display products. We participate in foreign exhibitions many times every year and we can visit you.
