Product Details:
Payment & Shipping Terms:
|
| LEDs: | Nationstar | Pannel Material: | Steel |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞6500nits | IP Rating(Front/Rear): | IP65 |
| Highlight: | led digital billboard,outdoor led billboard |
||
Waterproof IP65 P8mm P10mm Outdoor Fixed LED Billboard Display Screen Led Panel Led Tvs
Features and Advantages:
Smart Cabinet Design
High Visibility
High Clarity SMD Technology
Specification
| BOF-8 | BOF-10 | |
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 65 / 45 | 65 / 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /panel | 360 W /panel |
| Max Power Consumption | 900 W /panel | 900 W /panel |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC | -20ºC - 50ºC / 10ºC - 90ºC |

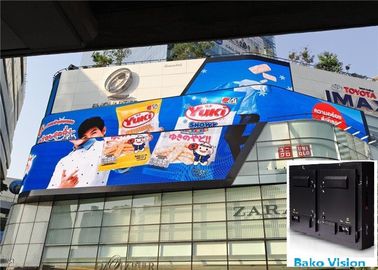

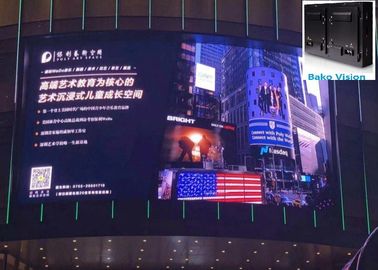

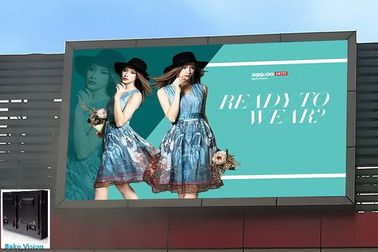

Case
FAQ
1. Are you trading company or manufacturer?
We are a professional led screen manufacturer located in Shenzhen since 2005.
2. How to payment?
We accept the L/C, T/T.
3. What is the packing method?
We usually use plywood case or flight case.
4. How about the delivery time?
We will ship within 15-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the sample cost and the courier cost.
6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.
Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
