Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | 3.91mm | Pixel Density: | 65,536 Pixels/㎡ |
|---|---|---|---|
| Servicing: | Front/Rear | Viewing Angle: | 160°/140° |
| Contrast Ratio: | 4000:1 | Brightness: | ＞6000nits |
| Panel Dimensions: | 500 X 500 X 80 / 500 X 1000 X 80 | Weight: | 9 / 15 Kg/panel |
| Highlight: | led screen stage backdrop,concert led screen |
||
P3.91mm Outdoor Waterproof Rental LED Stage Display
Features and Advantages:
Slim and Light Weight Cabinet Design
Die cast aluminum cabinet, perfect splicing without gaps. Weight only 8kg, easy to handle. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Back Service Module For Quick and Easy Maintenance
Rear control box uses snap-in design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 4000:1 and ultra-high-definition perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
Quick Setup and Disassebmly
Unique brake lock design, the upper and lower cabinet connection can be completed in only one second, use the method to watch the video below.
Adjustable Angle Lock
The cabinet can be arc-shaped connected, with its own angle adjustment device, can achieve concave and convex 10 degrees of adjustment to meet the different arc connection requirements.
Specification:
| BOR-III-3 | |
| Physical Pitch | 3.91mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 65,536 pixels/Square Meter |
| Module Dimensions(W x H) (mm) | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 64 x 64 |
| Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 |
| Panel Material | Die-Casting Aluminum |
| Single Cabinet Weight | 9 / 15 kg/panel |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 75 /150 W /panel |
| Max Power Consumption | 225 /550 W /panel |
| Operating Temp/Humidity | -20ºC - 60ºC / 10ºC - 60ºC |
| Storage Temp/Humidity | -30ºC - 60ºC / 10ºC - 60ºC |
| Refresh Rate | >1,920 Hz |
| Brightness | ≥6,000nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |

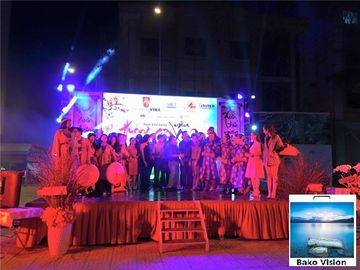

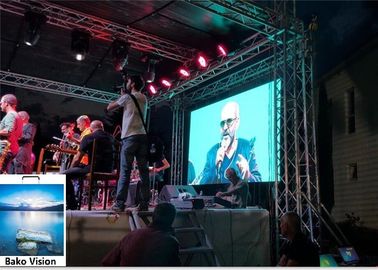

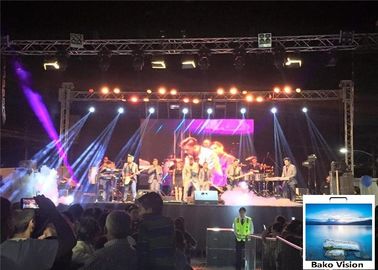

Case:
Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
