Product Details:
Payment & Shipping Terms:
|
Material: | Aluminum | Light: | Nationstar |
---|---|---|---|
IP Rating: | IP30 | Usage: | For Indoor Shopping Mall |
Warranty: | 2 Years | Brightness: | More Than 5500nits |
Power Supply: | Meanwell | Feature: | No Cable Between Module |
Highlight: | clear led screen,transparent glass led display |

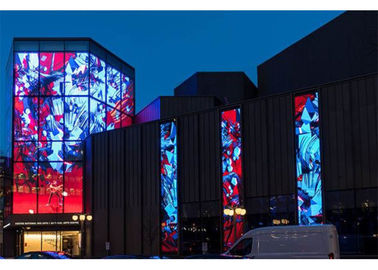

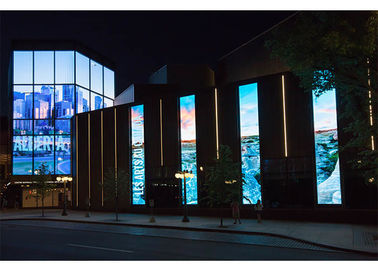

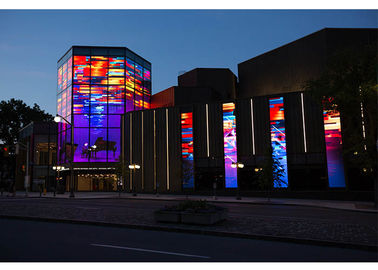

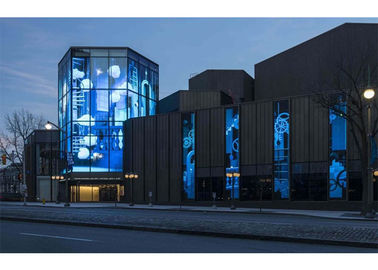

Indoor SMD Transparent Glass LED Display, High Brightness Window Advertising LED Video Wall
Product Description:
Clean and See Through Displaying, Innovative Transparent Technology
Laminated Safety Glass
Excellent Viewing Angle
Hidden Cable Appearance
Easy to Install and Dismantle
Parameters:
Pixel Pitch | P3.75-8 | P5-6.6 | P5-8 | P7.5-8 | P10 |
LED Type | SMD1921 | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
Driving Method | 1/8 | 1/6 | 1/6 | 1/4 | 1/3 |
Pixel Density | 33333dots/sqm | 30000dots/sqm | 25000dots/sqm | 16667dots/sqm | 10000dots/sqm |
Module Size | 480*320 | ||||
Module Resolution | 128*40 | 96*48 | 96*40 | 64*40 | 48*32 |
Panel Weight | 10.2kg/sqm | 10kg/sqm | 9.5kg/sqm | 9kg/sqm | 8kg/sqm |
Cabinet Size | 960*640 | ||||
Cabinet Resolution | 512*80 | 384*96 | 384*80 | 256*80 | 192*64 |
Gray Scale | 16 bit | ||||
Contrast Ratio | 2000:1 | ||||
View Angle(H/V) | 120°/ 140° | ||||
Refresh Rate | >1920Hz | ||||
Brightness | >5500nits | ||||
IP Rating | IP30 | ||||
Servicing | Rear | ||||
Operating Temp/Humidity | -10℃-60℃ / 10%-90% | ||||
Expected Lifetime | 100,000Hrs | ||||
Average Power Consumption | 207W/sqm |
Features:
Special Emitting Angle
● Lighting from tube Side emitting
● Brightness and color are penetrated via the glass effect
● Embedded-In SMD technology, avoid to be knocked off during transportation and installation
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
