Product Details:
Payment & Shipping Terms:
|
| Tickness: | 33mm | Module Dimensions (Wxh) (mm): | 280*210 |
|---|---|---|---|
| Refresh Rate: | >2880 Hz | Contrast Ratio: | 4000:1 |
| Driving Method: | 1/28 Dynamic Scan | Frame Rate: | 60 Fps |
| Colors: | 281 Trillion | Power Supply: | G-Energy Or Meanwell |
| Control System: | Linsn Or Novastar | Warranty: | 2 Years |

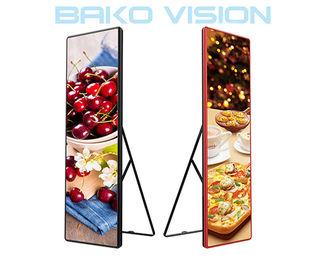

Floor Standing Digital 2.5mm Pitch Ultra Thin Portable LED Poster Display
Description:
Poster LED Display is a specially designed product targeting for indoor HD LED advertising player with highly integrated hardware and outdoor led display player with high brightness and easy installation, ultra-thin and light body, which can be your first choice to achieve perfect led advertising display effect.
Products Feature
1,Ultra slim and light-weight body, easy to lift up
The tickness of Our this series poster screen only 35mm. While others 45mm.making installation easy and fast .
2, HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3, Multiple communication modes
Communication via USB, WIFI, 4G, network cable and HDMI increase service efficiency. Besides, you can control it by your mobile phone APP, really convenient.
4. Various work modes
Besides single display work mode, multiple led display screen can be combined together creatively to bring a variety of display effect and improve the advertising efficiency.
5.>2880Hz Refresh rate and 16 bit processing
Presenting you vivid videos and colorful pictures for its high gray scale and high refresh rate.
Specifications
| BP-2 | |
| Physical Pitch | 2.5mm |
| Pixel Configuration | SMD2020 |
| Pixel Density | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 |
| Panel Material | Aluminum |
| Colors | 281 trillion |
| Sigle Cabinet Weight | 32kg |
| Processing | 16 bit |
| Refresh Rate | >=2800 Hz |
| IP Rating | IP40 |
| Viewing Angle | 160°/140° |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set |
| Servicing | Front |
| Driving Method | 1/28 Dynamic Scan |
| Frame Rate | 60 fps |
Products detail
We provide synchronous or asynchronous operating systems, you have the flexibility to choose your way.You could push the image or words into a global screen and monitor it in the office .Of course, no matter the brightness or the playing contents can also be adjusted.You can remotely control the brightness of the screen, as well as the content and time it plays.
Plug and play
User friendly interface, easy to edit and send content to the display.
Variable Installation Ways and application
1. Wall Mounted
2.Hanging
3. Bracket Standing
4.Ground Standing / Multi-Screen Cascade
Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
