| Cabinet Material: | Steel / Aluminum | Module Size: | 320 X 320 Mm |
|---|---|---|---|
| Cabinet Size: | Customized | Brightness: | 6500 Nits |
| LED Type: | Nationstar | Control System: | Novastar |
| Highlight: | roadside led display,outdoor waterproof led advertising panels |
||
P6 Outdoor LED Display Big Screen for Advertising 6500 Nits IP65 Waterproof
Key Features:
1. LED display have good waterproof and anti-humidity when used.
2. Stable cabinet, stronger without distortion, anti-rust.
3. Synchronously adjust the brightness and color to make the true and exquisite image.
4. High contrast, high refresh rate make the image without any delay, trailing smear.
5. Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.
6. Special wooden box package production protect the whole screen system.
7. All weather work,fully adapt to the outdoor environment.
8. Great uniformity and screen flatness.
Parameters:
| Pixel Pitch | 4.81mm | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 43,264pixels/m² | 22,500pixels/m² | 15,625pixels/m² |
| Moduel Demensions(mm) | 250 x 250 | 320 x 320 | 256 x 256 |
| Panel Demension(mm) | 1000x1000x150 | 1280x960x150 | 1280x960x150 |
| Resolution of Module | 52 x 52 | 48 x 48 | 42x42 / 42x84 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 65/45kg | ||
| Contrast Ratio | 2000 :1 | ||
| Brightness | 6500 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 360 W/panel | ||
| Max Power Consumption | 900 W/panel | ||
| Viewing angle(H/V) | 140°/160° | ||
| Servicing | Front / Rear | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 65/IP 54 | ||
| Operating Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Storage Temp/Humidity | -20℃~50℃ / 10%~90% | ||
| Certification | CCC, CE, ETL, FCC | ||

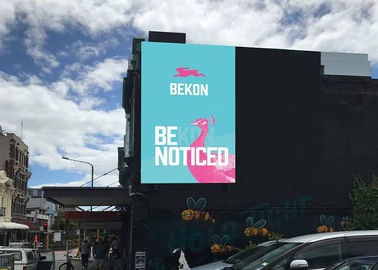

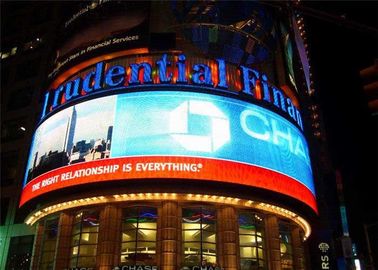

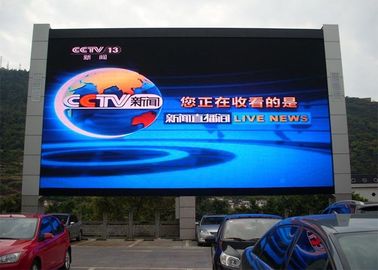

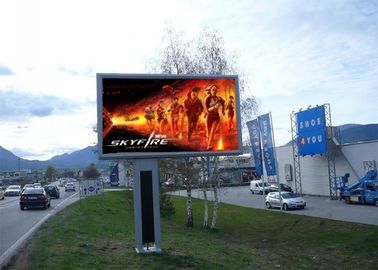

Cases:
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance
FAQ:
1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
2. What is your terms of payment?
T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?
2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?
4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
