Product Details:
Payment & Shipping Terms:
|
| Material: | Die Casting Aluminum | Light: | Nationstar |
|---|---|---|---|
| Power Supply: | Meanwell | Driver IC: | MBI5124 |
| Usage: | Outdoor Rental | Warranty: | 2 Years |
| Brightness: | More Than 6000 Nits | ||
| Highlight: | outdoor led screen hire,events led display |
||
Waterproof Outdoor Rental LED Display, Long Lifetime SMD LED Panel with 6000 Nits
Product Description:
● High Brightness, High Definition
● Ideal for Touring Application
● Slim and Large Format Cabinet
● High Definition Outdoor Display
● Curvilinear, Concave, Convex
Parameters:
| Pixel Pitch | P3.91 | P4.81 | P5.95 | P6.25 | |||
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | |||
| Module Size | 250*250mm | ||||||
| Cabinet Size | 500*500mm*80 / 500*1000*80 | ||||||
| Module Resolution | 64*64 | 52*52 | 42*42 | 40*40 | |||
| Cabinet Weight | 9/15KG | ||||||
| Cabinet Material | Die-Casting Aluminum | ||||||
| Gray Scale | 16 bit | ||||||
| Contrast Ratio | 4000:1 | ||||||
| View Angle(H/V) | 160°/ 140° | ||||||
| Refresh Rate | ＞1920Hz | ||||||
| Brightness | ≥6000nits | ||||||
| IP Rating | IP65 / IP54 | ||||||
| Servicing | Front / Rear | ||||||
| Max Stacking/Hanging | 20/10 | ||||||
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | ||||||
| Expected Lifetime | 100,000Hrs | ||||||
| Average Power Consumption | 225/550W/ Panel | ||||||
Features:
User Friendly and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules
● Front and rear access
● Tools free installation
Slim, Light Weight and Quiet
● 500mmx500mm or 500mmx1000mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
● 1 person job
Conection System:

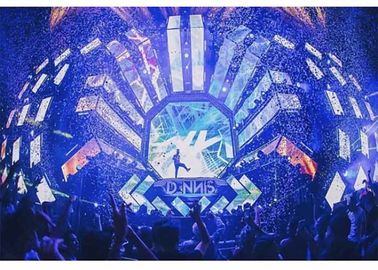

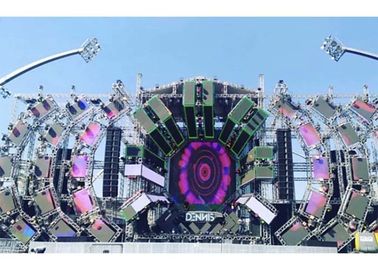

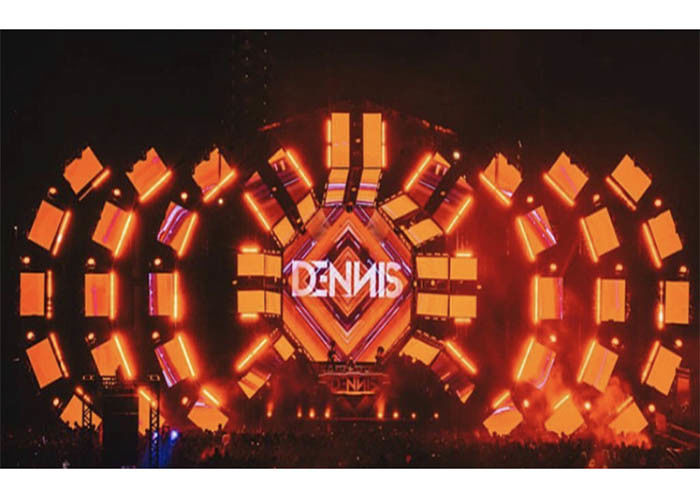

Our Cases:
Exhibitions:
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ:
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
