Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | Module Size: | 240*240mm |
|---|---|---|---|
| Cabinet Size: | 480*480mm | Panel Material: | Die-casting Aluminum |
| Life Span: | 100,000 Hours | Warranty: | 2-5 Years |
| Display Function: | Video, Text, Image, Picture | Usage: | Indoor |
| Highlight: | stage led video wall,indoor led advertising scree |
||
Indoor Fixed LED Display P2.5 Nationstar LED Screen Die Casting Aluminum Durable Panel with Magnet
Indoor LED Screen Introductions
Die-casting aluminum cabinet size: 480*480*80mm weight: 7 KG
Fan-less design
Ensures a noiseless LED screen,making it suitable for the high-level applications.
No flat & power cable on module
Everything is connected with pin type socket.
Calble free design makes it fast for installation and stable in data/power transmission.
Convenient and strong Locks
Quick locks provide easy installation, which can reduce the cost and time of installation.
Cat-6 data cable connection ensures stable data transmission.
Seamless connection
The cabinet precision is 0.05mm to make sure of seamless connection.
Both front and rear service
Front service makes it easy to install the display onto the wall.
High contrast ratio, high refresh rate and gray scale
Make it possible for high level occasions like TV station.
Indoor Video Wall Parameters
| BHD-1.5 | BHD-1.6 | BHD-1.8 | BHD-2.5 | BHD-3 | |
| Physical Pitch | 1.579 mm | 1.667 mm | 1.875mm | 2.5mm | 3mm |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD2121 | SMD2121 |
| Pixel Density | 401,110 pixels/sqm | 360,000 pixels/sqm | 284,444 pixels/sqm | 160,000 pixels/sqm | 111,110 pixels/sqm |
| Module Dimensions(W*H)(mm) | 240*240 | 240*240 | 240*240 | 240*240 | 240*240 |
| Panel Dimensions(mm) | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 | 480*480*80 |
| Physical Resolution of Panel(W*H) | 304*304 | 288*288 | 256*256 | 192*192 | 160*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 258 W/panel | 264 W/panel | 260 W/panel | 215 W/panel | 235 W/panel |
| Max Power Consumption | 715 W/panel | 680 W/panel | 690 W/panel | 640 W/panel | 670 W/panel |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Brightness | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits | 600-1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |

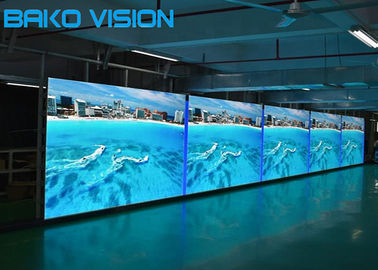

P2.5 LED Display Case
Packaging and Shipping
Why Choose Bako Vision
1. Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets.
2. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
3. BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
4. BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
