Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD2121 | LEDs: | Nationstar |
|---|---|---|---|
| Control System: | Novastar | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 4000:1 |
| Panel Dimensions: | 500 X 500 X 80mm / 500 X 1000 X 80mm | Weight: | 8 / 14kg/panel |
| Highlight: | led publicity screens,indoor led billboard |
||
P2.6 P2.97 Tools Free Installation Indoor Rental LED Display
Features and Advantages:
Wireless Data and Power Connection
Unique design, quick and clean look, wireless yet stable data and power connection method
Adjustable Angle Lock, Flexible Stage Design
Arc-shaped connection available, with angle adjustment device, concave and convex 10 degrees of adjustment as you wish for different stage.
Light Weight Cabinet Design, One Man Operation
Weight only 8kg, easy to handle. Die cast aluminum cabinet, perfect splicing without gaps. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
Front Maintenance Magnetic Module
Snap-in quick disassembly design, maintenance and installation is more efficient and convenient.
Absolute 4K HD Display Visual Effects
High contrast 4000:1 and HD 4K perfect picture quality, bring you absolute visual enjoyment.
easily attract attention, greatly enhance the value of advertising.
Specification:
| BIR-III-2X | BIR-III-2 | |
| Physical Pitch | 2.6mm | 2.97mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 147,456 pixels/Sqm | 112,896 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 96 x 96 | 84 x 84 |
| Physical Resolution of Panel (W x H) | 192 x 192 / 192 x 384 | 168 x 168 / 168 x 336 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 8 / 14 kg/panel | 8 / 14 kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 64 /128 W /panel | 64 /128 W /panel |
| Max Power Consumption | 192 /384 W /panel | 192 /384 W /panel |
| Operating Temp/Humidity | -10ºC - 60ºC / 10ºC - 60ºC | -10ºC - 60ºC / 10ºC - 60ºC |
| Storage Temp/Humidity | -30ºC - 60ºC / 10ºC - 60ºC | -30ºC - 60ºC / 10ºC - 60ºC |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Brightness | ≥1,200nits | ≥1,200nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20 / 10 | 20 / 10 |
| Max Hanging | 20 / 10 | 20 / 10 |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 |

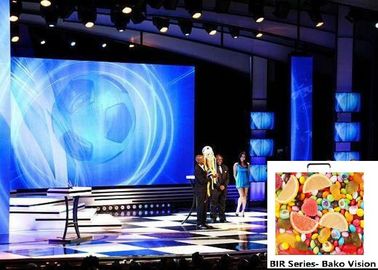

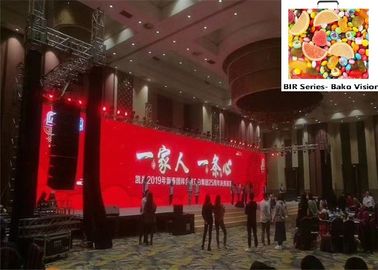

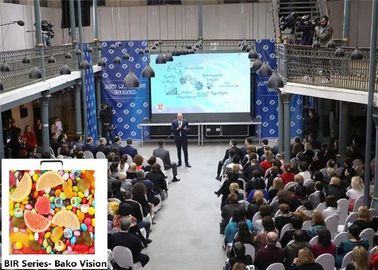

Case:
FAQ
1. How can I place an order?
Please provide all the details of your requirements for our reference So we can send you the offer at the first time.Feel free to contact with me by What's APP/email /phone to avoid any delay.
2. What kind of display you provide?
We have indoor/outdoor/LED stage/Sport display/ Irregular LED display/monitor screen for you choose.
3. Are you manufacturer of led display.If yes, in which city?
Yes, We already have more than 14 years experience for LED display as a LED manufacturer located in Shenzhen
4. How long can I get the goods?
Our product leadtime is about 10-25 working days.When you confirm the order, we can start production at once receiving your deposit(30% TT in advance). we will update the production details in time.we will notice you when we can delivery the goods to you after we get full payment.
5.May I know the package details?
For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
6.What is the payment method?
We support the payment methods as TT.
7. What's the pixel pitch for Indoor LED Display Screen?
Indoor (P2.6mm/P2.97mm/P3.91/P4.81mm) led display screen
8.Can it play HD video?
Yes, it can realize HD video function with Linsn/nova controlling system
9.What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc
10. What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
