Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | IP Rating: | IP43 |
|---|---|---|---|
| Specification: | 8.5 - 15 Mm | Foldable Degree: | 360 Degree |
| Pixel Configuration: | 1R 1G 1B | United Size: | 250 X 250 |
| Installations: | Hanging Stacking Attaching | Max Length Of Control Box: | 8 M |
| Servicing: | Front | ||
| Highlight: | flexible led curtain display,soft led screen |
||
Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation16-BF-Tia.pdf
Foldable Flexible LED Display IP43 Front Servicing Light Weight Easy Installation is a creative product with very light weight and easy installation. It's widely used in stage events, and it has high resolution and brightness and refresh rate.
It takes just four steps to install this foldable led display.
1) Install a metal sheet on the wall
2) Apply the foldable led display on the metal sheet
3) Put the control box on the top
4) Connect the cables and turn on the screen
Easy Installation Foldable Flexible LED Display Parameters:
| BF-6 | BF-7 | BF-10 | BF-12 | |
| Physical Pitch | 6 mm | 7.8 mm | 10 mm | 12 mm |
| Pixel Configuration | SMD 3528 | SMD 3528/3535 | SMD 3528 | SMD 3528 |
| Pixel Density | 27,556 pixels/m² | 16,384 pixels/m² | 10,000 pixels/m² | 6,889 pixels/m² |
| Unit Size (W*H)(mm) | 192*192 | 250*250 | 250*250 | 250*250 |
| Physical Resolution of Unit (H*V) | 32*32 | 32*32 | 16*16 | 16*16 |
| Weight (kg/m²) | <10 | <9 | <9 | <9 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1/4,000:1 | 2,000:1/4,000:1 | 2,000:1/4,000:1 | 2,000:1/4,000:1 |
| Average Power Consumption | 150/310 W/m² | 90/200 W/m² | 110 W/m² | 75 W/m² |
| Max Power Consumption | 375/775 W/m² | 225/500 W/m² | 275 W/m² | 187 W/m² |
| Brightness | 2,000/4,000 nits | 1,500/6,000 nits | 1,500 nits | 1,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Foldable Angle | 360° | 360° | 360° | 360° |
| Max Length of Control Box | 6 m | 8 m | 4 m | 12 m |
Light Weight Foldable Flexible LED Display Features:
1.Ultra Thin & Light Weight
2.Conventient Installation & Combination
3.Extraordinary Flexibility
4.Maintenance way: Front service.
5.It can save: transporation and storage cost, installation time, labor cost.

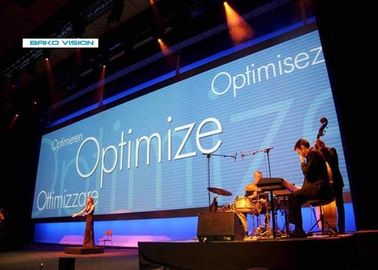

Foldable Flexible LED Display IP43 Front Servicing Light Weight Easy Installation Cases:
About us:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
