| Pixel Configuration: | SMD 2727 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 100,000 Hrs | Module Demensions (W*H)(mm): | 320*320 |
| Panel Dimensions (mm): | 960*960 | Operating Temp / Humidity: | -20ºC-50ºC/10%-90% |
| Refresh Rate: | >1920 Hz | Contrase Ratio: | 2000:1 |
| Highlight: | street led screen,outdoor waterproof led advertising panels |
||

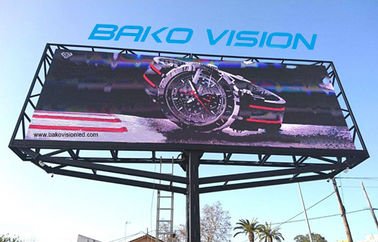

Commercial Outdoor P6.67mm Led Advertising Digital Billboard Waterproof
Main advantages:
1. Customized, Can be flat screen and curved screen, one screen, multiple use, you can shape anything you want.
2.The resolution is 30976 pixels per square meter so definition is high enough for showing video, images and it's clear enough when viewed in short distance.
3. Clear Vivid Image Quality, even in direct , full-on sunlight to ensure you attracts more
audience to get short ROI of your LED screen's investment.
4. Good waterproof protection: Front is IP65 and back is IP54.
4. Low power comsumption. The working voltage is 5V, which is very safe to use. Reducing the voltage to receive energy saving between 40% and 20%
5. Fixed installation is not easy to shift, and front maintenance is convenient for maintenance.
Specifications
| BOF-6.67 | |
| Physical Pitch | 6.67 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 |
| Physical Resolution of Panel (W*H) | 192*144 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Procesure Details
We also have the 960*960mm cabinet, with the Steel material ,and the tickness is 150mm, really robust, sturdy and conventional, commerical by our client to make the choice.
2. In Installation (relate the accessory)
We provide synchronous or asynchronous operating systems, you have the flexibility to choose your way.You could push the image or words into a global screen and monitor it in the office .Of course, no matter the brightness or the playing contents can also be adjusted.You can remotely control the brightness of the screen, as well as the content and time it plays.
Widely Application:

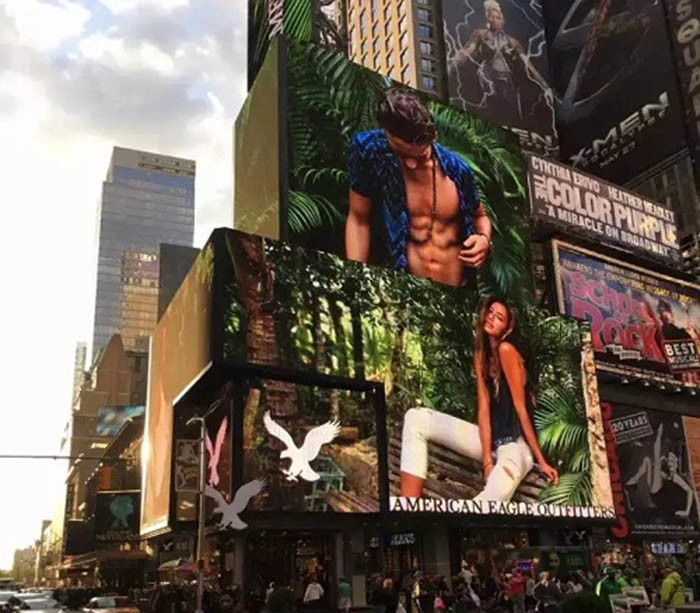

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
