Product Details:
Payment & Shipping Terms:
|
| Contrast Ratio: | 4000:1 | Pixel Density: | 65536 Pixels/m2 |
|---|---|---|---|
| Pixel Configuration: | SMD2121 | Panel Size: | 500x500mm Or 500x1000mm |
| Panel Material: | Die-casting Aluminum | Power Supply: | Meanwell Or G-eneergy |
| Physical Pitch: | 3.91mm | Control System: | Novastar |
| Highlight: | led publicity screens,indoor led billboard |
||

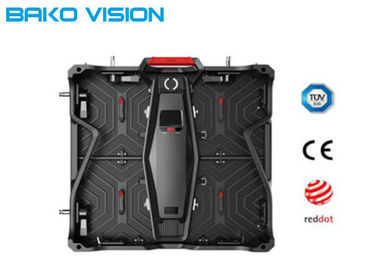

Rental P3.91 P4.81 LED Display Panel Indoor HD Full Color 500x500m
P 3.91 mm indoor led wall ( 500 mm X 500mm)
CE certificate from TUV
Reddot Award 2017
Sleek & Slim design
The cabinet is slim and rear design is a smooth-edged surface that makes you handle safely.
Innovative handle
The handle is innovative, grip and wide for easy handling.
UI LCD display
The rear box has an LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage.
Power and signal lamps indicate cabinet status.
Dual data connection
There is optional data connecting port on cabinets under a rear box, you can use it if standard one fails.
No flat & power cable on the module
Everything is connected with pin type socket. The Cable-free design makes it fast for installation and stable in data/power transmission.
Strong Locks for hanging installation
The cabinets locks are smooth-edged, easy handling and strong that you can hang up many cabinets in the same row.
Fast assembling & disassembling
No tools are required for installation of the screen.
500*500 mm cabinets and 500*1000 mm cabinets can connect together easily.
Specifications:
| Model | BIR-I-2 | BIR-I-3 | BIR-I-4 | BIR-I-6 |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm | 6.25mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 | SMD3528 |
| Pixel Density | 112896 pixels/m² | 65536 pixels/m² | 43264 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W× H) (mm) |
250*250/250*500 | 250*250/250*500 | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions (mm) | 500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
500*500*80 500*1000*80 |
| NO .of Modules Per Panel (W × H) | 2x2 | 2x2 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 84*84/64*168 | 64*64/64*128 | 52*52/52*104 | 40*40/40*80 |
| Panel Material | 168*168/128*336 | 128*128/128*256 | 104*104/104*208 | 80*80/80*160 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281trillion | 281trillion | 281trillion | 281trillion |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Average Power Consumption | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel | 60/120W/Panel |
| Max Power Consumption | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel | 110/400W/Panel |
| Operating Temperature | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC | -10~60ºC/10~60ºC |
| Storage Temperature | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC | -30~60ºC/10~60ºC |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | 900-1200nits | 900-1200nits | 900-1200nits | 900-1200nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Certification | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL | CCC,CE,FCC,ETL |
About us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team,
we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.
Q2. What's your payment term?
A: T/T, Western Union, L/C
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA
to deal with after-sales and provide technical support.
Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance,
and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
