Product Details:
Payment & Shipping Terms:
|
| Control System: | Novastar Or Linsn | Panel Size: | 100x50cm |
|---|---|---|---|
| Weight: | 13kg Per Sqm | Refresh Rate: | 1920 Hz |
| Brightness: | 5500 Nits | Power Supply: | Meanwell |
| Driver IC: | ICN2038S Or ICN2135 | ||
| Highlight: | clear led screen,see through led screens |
||
High brightness of 5500 Nits P3.9 Transparent Led Video Display 100x50cm Panel
P3.9 Transparent Led Video Display Parameters:
| BG-3.9-7.8 | |
| Physical Pitch | 3.9x7.8mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 32256pixels/m² |
| Module Dimensions (WxH)(mm) | 500x125 |
| Panel Dimensions (WxH)(mm) | 1000x500 |
| NO. of Modules Per Panel(WxH) | 2x4 |
| Physical Resolution of Module(WxH) | 128x16 |
| Physical Resolution of Panel(WxH) | 256x64 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 180W/m² |
| Max. Power Consumption | 560W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | 1000~4200 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | 1/7 Scan |
P3.9 Transparent Led Screens Features:
1.High transparency & high brightness available;
The transparency is around 70% to 88%, it's really see-throgh media.
while the brightness can reach 5,500nits which is still visible under sunshine.
2. Trimmed led strip can archive any shape of led display
3. Customized cabinet design, such as curved panels available;
4. Light weight only 13kg/sqm, while normal screen at least 25kg/sqm;
P3.9 Transparent Led Video Display Installation details:

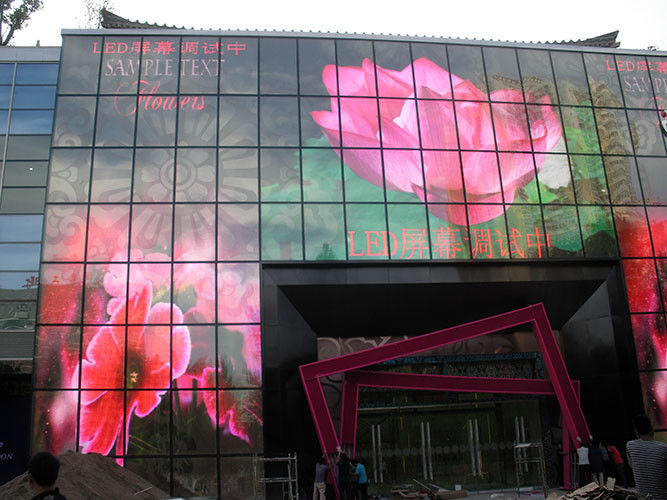

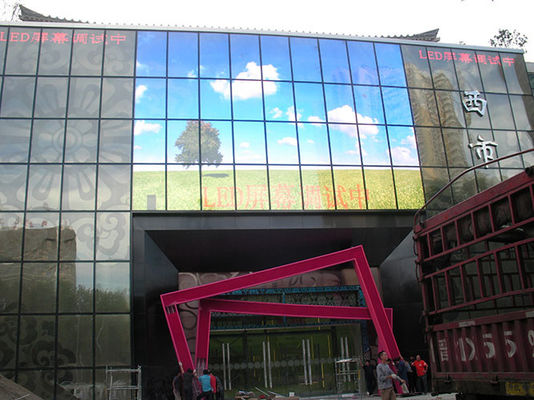

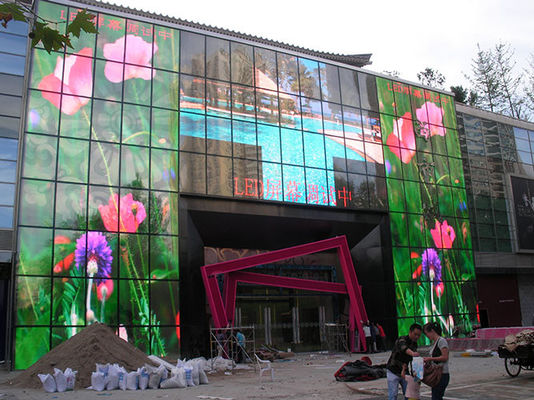

P3.9 Transparent Led Video Display Cases:
