Product Details:
Payment & Shipping Terms:
|
| Processing: | 16bit | Refresh Rate: | >1920Hz |
|---|---|---|---|
| Panel Material: | Aluminum | Brightness: | 5500nits |
| Expected Lifetime: | 100000 Hours | Panel Size: | 960x640mm |
| Physical Pitch: | 10mm | Viewing Angle: | 160/140 Degree |
| Contrast Ratio: | 2000:1 | Control System: | Nova |
| Highlight: | clear led screen,see through led screens |
||
HD Indoor SMD P10 Transparent LED Display Screen High Brightness Slim
Clean and See Through Displaying, Innovative Transparent Technology
Laminated Safety Glass
Excellent Viewing Angle
Hidden Cable Appearance
Easy to Install and Dismantle
Feature
Slim, Lightweight and Quiet
35mm-45mm thickness
Available to attach onto glass wall directly
High Transparency and Concise
60-80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Special Emitting Angle
Lighting from tube Side emitting
Brightness and color are penetrated via the glass effect
Embedded-In SMD technology, avoid being knocked off
During transportation and installation
Specifications:
| Model | BG-3.9-7.8 | BG-3.75-8 | BG-5-6.67 | BG-5-8 |
| Physical Pitch | 3.9*7.8mm | 3.75*8mm | 5*6.67mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD3528 | SMD3528 |
| Pixel Density | 32768 pixels/㎡ | 33,250 pixels/㎡ | 30,000 pixels/㎡ | 25,000pixels/㎡ |
|
Module Dimensions (W*H)(mm) |
1000*250/500x250 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 1000*1000 | 960*640 | 960*640 | 960*640 |
| Physical Resolution of Module(W*H) | 256*32/128X32 | 128*40 | 96*48 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*128 | 256*80 | 192*96 | 192*80 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 11kg/sqm | 10.2kg/sqm | 10kg/sqm | 9.5kg/sqm |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption | 207W/panel | 201W/panel | 209W/panel | 203W/panel |
| Max Power Consumption | 690W/panel | 670W/panel | 696W/panel | 670W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >5,500nits | >5,500nits | >5,500nits | >5,500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP30 | IP30 | IP30 | IP30 |
| NO.2 | BG-7.5-8 | BG-10 | BG-16 | BG-20 |
| Physical Pitch | 7.5*8mm | 10*10mm | 16*16mm | 20*20mm |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| Pixel Density | 16,625pixels/m² | 10,000pixels/m² | 3,906 pixels/m² | 2,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 960*640 | 960*640 | 960*640 | 960*640 |
| NO. Of Modules Per Panel(W*H) | 2*2 | 2*2 | 2*2 | 2*2 |
| Physical Resolution of Module(W*H) | 64*40 | 48*32 | 30*20 | 24*16 |
| Physical Resolution of Panel(W*H) | 128*80 | 96*64 | 60*40 | 48*32 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 9kg/m² | 8kg/m² | 7.2kg/m² | 6.5kg/m² |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Colour Number | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 204W/m² | 195W/m² | 218W/m² | 218W/m² |
| Max. Power Consumption | 670W/m² | 650W/m² | 650W/m² | 650W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz | >1920Hz | >1920Hz | >1920Hz |
| Brightness | >5500 nits | >5500 nits | >5500 nits | >5500 nits |
| Viewing Angle | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Servicing | Rear | Rear | Rear | Rear |
| Certification | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC | CCC,CE,ETL, FCC |

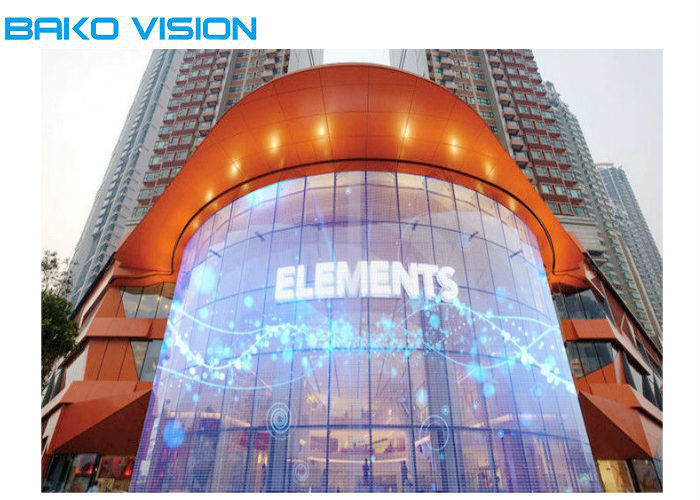

Application:
About Us:
Shenzhen BAKO VISION Technology Co., Ltd, Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team,
we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Service:
1. We guarantee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.
3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.
4. We can provide the training and technical support for the customer in the factory if the customer asks.
5. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.
6. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
