Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Steel/Aluminum | Brightness: | >6,500 Nits |
|---|---|---|---|
| Servicing: | Front/Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Highlight: | street led screen,outdoor waterproof led advertising panels |
||
P10 SMD3535 Outdoor LED Display Screen Full Colour Fixed Advertising LED Panel
Specification
| BOF-4 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm |
| Pixel Configutation | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Pixel Density | 43,264pixels/sqm | 22,500pixels/sqm | 15,625pixels/sqm | 10,000 pixels/sqm |
| Module Dimention(W*H)(mm) | 250*250 | 320*320 | 256*256 | 320*320 |
| Panel Dimention(mm) | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Physical Resolution of Module(W*H) | 52*52 | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel(W*H) | 208*208 | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(kg/㎡) | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 360W/panel | 360W/panel | 360W/panel | 360W/panel |
| Max Power Consumption | 900W/panel | 900W/panel | 900W/panel | 900W/panel |
| Brightness | >6,500nits | >6,500nits | >6,500nits | >6,500nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Application
Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;
√ SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity.
√ Slim and small cabinet iron and aluminium.
√ Flight or plywooden case package,convenient to transport and collect,easy to move and good protection.
√ Fixed installation and Rental design, easy to install and dismantle,save much time for installation and maintainance.
√ Fixed installation, Seamless spliced,good outlooking
√ Good heat dissipation
√ Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
Description
The physical pitch vary from 4.81-10mm.Cabinet material adopt steel but can accept the aluminum customized,it will be lighter 20kg than steel panel .
Front access,the front maintenance can be split two type,first one is directly drop out the module from the front side,the second one is belong to front open panel,it means just open the screen cover for service,but the front open panel can only splice left and right.
Inside of module have buckle design for adjusting gaps between module and cabinet,to ensure the connection become tighter and seamless.For the bof series we use steel cabinet so the dimension customized is acceptable,also can do the concave and convex with any angle.
Robust,stable and long lifespan.For the longer lifespan and better visual effective on the bases of original,we added a lighter sensor on the led display,it can adjust the brightness according to day and night. Extremly guaranteed the life of display,reduced the human cost and power saved at the same time.
Not require high refresh,meanwhile the air plug can also take out,it ,means our power cable and signal cable can just insert from the hole of beside,this kind of design also saved cost for customers.
About control system,we classified synchronous control and asynchronous control.Currently our asynchronous control can make use of USB,RJ45,WIFI and 4G to transmitted.

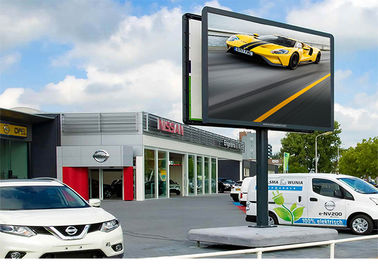

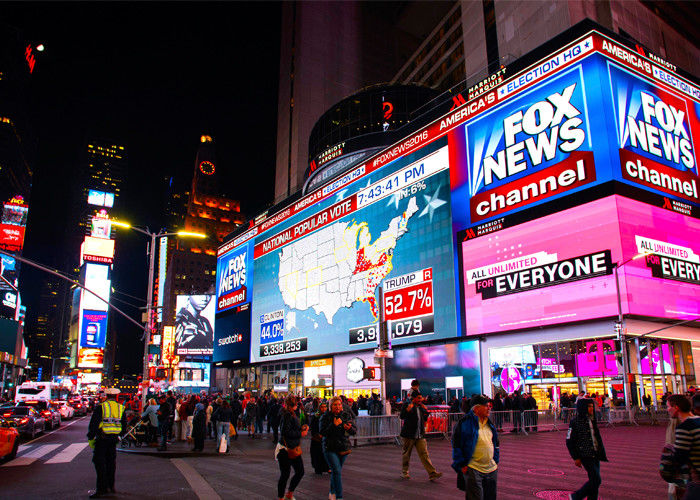

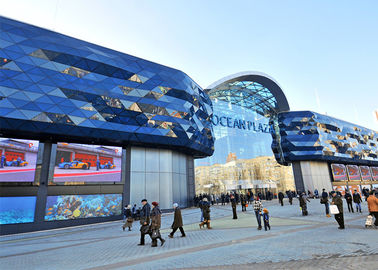

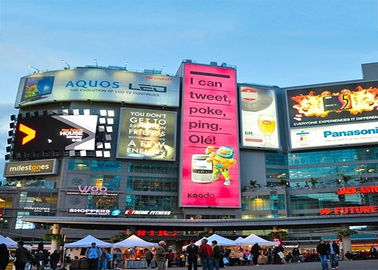

Case
Service
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.
Packaging and Shipping
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
