Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD 3528 | Processing: | 16 Bit |
|---|---|---|---|
| Colours: | 281 Trillion | Contrast Ratio: | 2000:1/ 4000:1 |
| Foldable Angle: | 360° | Expected Lifetime: | 100,000 Hrs |
| Servicing: | Front | ||
| Highlight: | flexible led curtain display,foldable led screen |
||

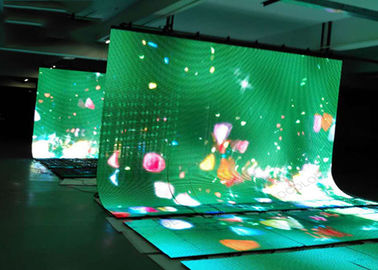

Foldable Modules, Hanging Indoor Full Color LED Display For Entertainment.
Main Description

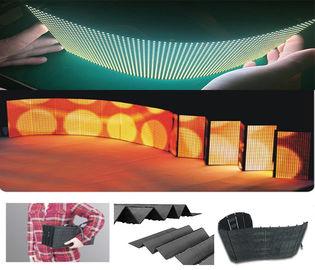

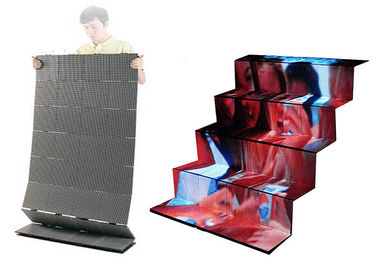

1. Variable Foldable Module
180 or 360 degree foldable. storage, transporation cost , space saving
2. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.

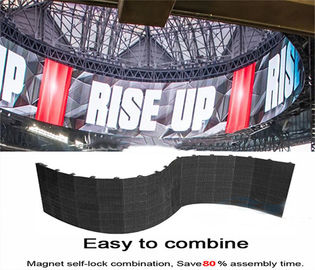

3. Easy and Fast Installation
Avsilable for both norizontal and vertial assembling,
Flat and curve options for any customized installation.
Jointed correctly, being installed & dismounted by one person without tool.
Easy connection design allows the fast set up and tear down, save 80% labor cost.
4. Fast Lock System & No Fan Design
Easy to install and dismantle: an average worker can finish 70 panels per hour. Natural cool system design and good heat dissipation.
Specification
| BF-6 | BF-7 | BF-10 | BF-12 | |
| Physical Pitch | 6 mm | 7.8 mm | 10 mm | 12 mm |
| Pixel Configuration | SMD 3528 | SMD 3528 / SMD 3535 | SMD 3528 | SMD 3528 |
| Pixel Density | 27,556 pixels/m² | 16,384 pixels/m² | 10,000 pixels/m² | 6,889 pixels/m² |
| Unit Size (mm) | 192*192 | 250*250 | 160*160 | 192*192 |
| Physical Resolution of Module(W*H) | 32*32 | 32*32 | 16*16 | 16*16 |
| Weight (kg/m²) | <10 | <9 | <9 | <9 |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Refresh rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | 2000/ 4000 nits | 1500/ 6000 nits | 1,500 nits | 1,500 nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| IP Rating (Front/ Rear) | IP43/ IP54 | IP43/ IP54 | IP43/ IP54 | IP43/ IP54 |
| Foldable Angle | 360° | 360° | 360° | 360° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Operating Temp/Humidity | -10ºC60ºC/10%-60% | -10ºC60ºC/10%-60% | -10ºC60ºC/10%-60% | -10ºC60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Driving Method | 1/40 | 1/40 | 1/40 | 1/40 |
| Avg. Power Consumption | 150 / 310 W/m² | 90 / 200 W/m² | 110 W/m² | 75 W/m² |
| Max. Power Consumption | 375 / 775 W/m² | 225 / 500 W/m² | 275 W/m² | 187 W/m² |
| Max Length Of Control Box | 6m | 8m | 4m | 12m |
Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
1. What is LED?
LED is sanded for light emitting diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are pixel pitch, pixel density, LED QTY and pixel configuration?
Pixel pitch is the distance between neighboring pixels.
Pixel density is the quantity of pixels per square meter.
LED qty is the quantity of LED lamps per square.
Pixel configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED type, module size and module resolution?
LED type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is drive method, driving IC and power supply
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
