Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | LED Lamp: | Kinglight |
|---|---|---|---|
| Weight: | 27~32 Kg/panel | Control System: | Novastar |
| Control Method: | APP,3/4G,Wifi | Thickness: | 33mm |
| Highlight: | truck mounted led screen,led advertising trailer |
||

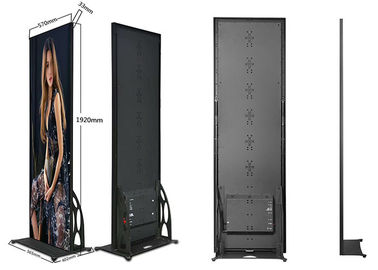

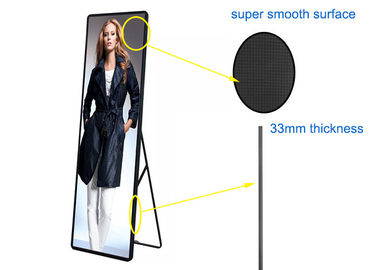

28kg 2880Hz Mobile LED Display Slim Movable Billboard for Store Advertising
Description:
1. Lightweight screen body, exterior design strive to show the high-end atmosphere, fashionable and flexible installation, to meet the needs of a variety of installation scenarios.
2. The system uses zero set design, easy operation, advertising plug and play, but also through mobile APP intelligent remote monitoring and management, so that everything is under control. LED "mirror screen" can be any stitching, so it is more traditional LCD, DLP, a larger area, broader perspective, and therefore more eye-catching, visual impact is stronger.
3. Stability, static images can be controlled in a few seconds beating, fast and slow phenomenon will not occur. There is also stability in the control management system, information dissemination and so on.
4. LED Poster is being designed in a way that it is not only a standee, it can be installed with various display method like hanging, side mounted and wall mounted. These allows you to showcase your products in varies merchandizing ways to suit your interior designs and decorations.
5. Shopping centers, restaurants, product launches, weddings, hotels, airports, luxury stores, chain stores, reception halls, mobile screens, live video, restaurants, reception halls, product launches, mobile screens and chain stores are very suitable for LED poster screen.
Parameters:
| Pixel Pitch | 1.9mm | 2.5mm | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 110,889pixels/m² |
| Module Dimention | 160mm x 160mm | 280mm x 210mm | 192mm x 192mm |
| Whole Set Dimention | 640 x 1920 x 33mm | 570 x 1920 x 33mm | 574 x 1920 x 33mm |
| Resolution of Module | 84 x 84 | 112 x 84 | 64 x 64 |
| Panel Material | Aluminum | ||
| Cabinet Weight | 27 kg~32 kg | ||
| Gray Level | 16 bit(281 trillion colors) | ||
| Contrast Ratio | 4000 : 1 | ||
| Average Power Consumption | 250W/Set | 200W/Set | 200W/Set |
| Max Power Consumption | 750W/Set | 600W/Set | 600W/Set |
| Driving Method | 1/32 Dynamic Scan | ||
| Brightness | 1000 nits | ||
| Refresh Rate | 2880 Hz | ||
| Viewing Angle(V/H) | 160°/ 140° | ||
| Frame Rate | 60 fps | ||
| Operating Temp/Humidity | -10℃~60℃ / 10%~60% | ||
| Storage Temp/Humidity | -30℃~60℃ / 10%~60% | ||
| IP Rating(Front/Rear) | IP40 | ||
| Expected Lifetime | 100,000 Hrs | ||
| Servicing | Front and Rear | ||
Project:
Delivery:
Company profile:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
