Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Aluminum | Whole Set Dimensions: | 572*1920*35 |
|---|---|---|---|
| Single Cabinet Weight: | 28kg | Expected Lifetime: | 100,000Hrs |
| Highlight: | front maintenance led display,outdoor full color led screen |
||
P2.5 Indoor Portable Digital Poster Media LED Billboard Mirror LED Display Screen
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5 mm |
| Pixel Configuration | SMD 1010 | SMD 2020 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² |
| Module Dimensions (W × H)(mm) | 280 × 210 | 280 × 210 |
| Panel Dimensions (mm) | 1902 × 572 × 35 | 1902 × 572 × 35 |
| NO .of Modules Per Panel (W × H) | 2 × 9 | 2 × 9 |
| Physical Resolution of Module (W × H) | 144 × 108 | 112 × 84 |
| Physical Resolution of Panel (W × H) | 972 × 288 | 756 × 224 |
| Panel Material | Aluminum | Aluminum |
| Single Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 250 W/ Set | 200 W/ Set |
| Max Power Consumption | 750 W / Set | 600 W / Set |
| Driving Method | 1/27 Dynamic Scan | 1/28 Dynamic Scan |
| Operating Temp/Humidity | -10° - 60°C / 10% - 60% | -10° - 60°C / 10% - 60% |
| Storage Temp/Humidity | -30° - 60°C / 10% - 60% | -30° - 60°C / 10% - 60% |
| Brightness | 1,000 nits | 1,200-1,500 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz |
| Vertical Viewing angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| IP Rating (Front/Rear) | IP40 | IP40 |
| Frame Rate | 60 fps | 60 fps |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |

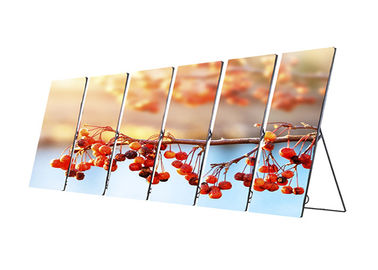

P2.5 Lightweight Poster LED Screen, Indoor Rental Full Color LED Display
LED Screen Poster Display

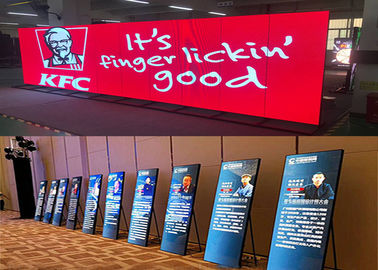

Part of our LED retail series, the LED Poster is a digital advertising standee that allows owners of retail businesses, restaurants, clubs, exhibitors and even organiser to feature their core products with a simplest way of uploading any video and digital static contents. It is Smart, Sleek and Simple.User can place it in any place and anywhere and it is portable and easy to keep.
Ultra Slim & Light Weight
LED Poster has been engineered with latest technologies to give it smoother, slimmer profile. It's crafted in beautiful anodized lightweight yet durable aluminium to make the entire poster frame weight less than 32kg, making it more portable and easier to install.
Front Serviceability
The maintenance of LED Poster is snappy and so easy. You'll will love the convenience of doing servicing and panel module replacement from the front with just a handle magnet. This method is exclusive to your LED Poster.
Our advantage
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: all products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Warranty: we guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
Packaging and Shipping
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding enterprises (Stock Code: 871745), focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
