Full Color Small Pixel Pitch Outdoor Fixed Led Display P6 SMD2727 LED Signs
Specification
| | BOF-4 | BOF-6 | BOF-8 | BOF-10 | | Physical Pitch | 4.81mm | 6.67mm | 8mm | 10mm | | Pixel Configutation | SMD2727 | SMD2727 | SMD3535 | SMD3535 | | Pixel Density | 43,264 pixels/sqm | 22,500 pixels/sqm | 15,625 pixels/sqm | 10,000 pixels/sqm | | Module Dimention (W*H)(mm) | 250*250 | 320*320 | 256*256 | 320*320 | | Panel Dimention(mm) | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 | | Physical Resolution of Module(W*H) | 52*52 | 48*48 | 32*32 | 32*32 | | Physical Resolution of Panel(W*H) | 208*208 | 192*144 | 160*96 | 128*96 | | Panel Material | Steel/Aluminum | | Weight(kg/sqm) | 65/45 | | Processing | 16 bit | | Contrast Ratio | 2,000:1 | | Average Power Consumption | 360W/panel | | Max Power Consumption | 900W/panel | | Brightness | >6,500nits | | Refresh Rate | >1,920Hz | | Vertical Viewing Angle | 160° | | Horizontal Viewing Angle | 140° | | Servicing | Front/Rear | | IP Rating(Front/Rear) | IP65/IP54 |
|
Product Features
1. Sheet metal box (iron box and aluminum box are available),size customization is acceptable.
2. Large area and it comes in black and gray.Concave,Convex with any angle.
3. Convetional DOOH display,high stability and durability.Strong and high bright LED.
4. Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and aligment.
5. Front access and fast lock system design guarantees a quick and easy installation.
6. Light sensor probe be used,suitable brightness adjustable for outdoor day and night.
7. Intelligent control and player system by cloud technology.Time management and real time monitoring.
Application

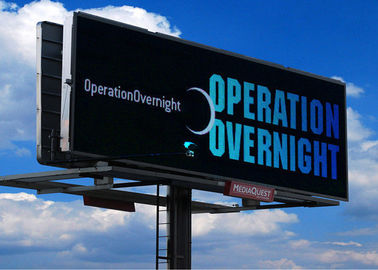

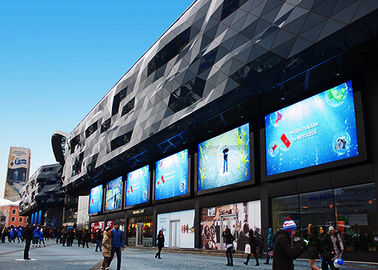

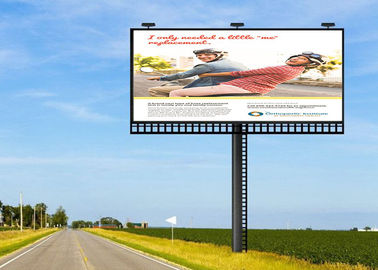

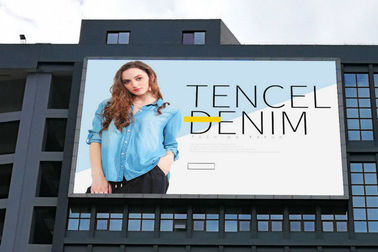

Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;
Our Service
1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.
Packaing and shipping
FAQ
Q1:Are you factory or a trade company?
A1:We are a factory owing professional R & D department and production lines with 14 years of experience in led display.
Q2:Why I should choose your company ?
A2:We have been focusing on the development of led svreen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.
Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 100000 hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.
About Us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
