Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Pixels: | 3.91mm |
|---|---|---|---|
| Tube Chip Color: | Full Color | Module Size: | 250* 250 |
| Cabinet Weight: | 9/15 Kg/panel | Application: | Outdoor Advertising Led |
| Life Span: | ≥100,000 Hours | Warranty: | 2 Years |
| Highlight: | outdoor led screen hire,events led display |
||

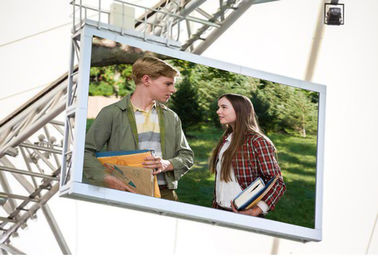

P3.91mm Waterproof Sign, Outdoor Rental LED Display Screen Full Color Wide Viewing Angle
BOR-I Series
Strength and Beauty
Customized:Curvilinear, Concave, Convex
Specification
| BOR-I-3 | BOR-I-4 | BOR-I-5 | BOR-I-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
| Pixel Density | 65536pixels/m² | 43264 pixels/m² | 28224 pixels/m² | 25600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 | 250 × 250 / 250×500 |
| Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 64×64/64×128 | 52×52/52×104 | 42×42/42×84 | 40×40/40×80 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% | -20ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | >6000 nits | >6000 nits | >6000 nits | >6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
