Product Details:
Payment & Shipping Terms:
|
| Module Size: | 250mm*250mm | Cabinet Size: | 500x500mm / 500x1000mm |
|---|---|---|---|
| Cabinet Material: | Die-casting Aluminum | Cabinet Weight: | 7kg/panel / 14kg/panel |
| Maintenance Way: | Rear/Front | Contrast Ratio: | 4000:1 |
| Refresh Rate: | 1920Hz / 3840Hz | Life Span: | 100,000 Hours |
| Warranty: | 2-5 Years | Application: | Live Events Led Display, Outdoor Video Shows |
| Highlight: | events led display,led rental display |
||

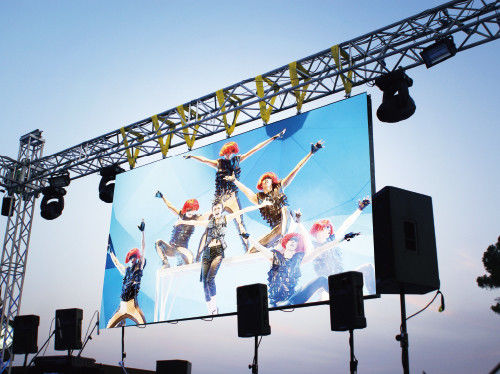

Outdoor Rental LED Display P3.91 Stage Video Wall Die-casting Aluminum Cabinet Advertising Media Display
BOR-II Series (BOR-II.pdf)
Rental LED Display Features
Outdoor Rated
IP65 rating for front and rear
Suitable brightness adjustable for outdoor day and night
Deep black levels,contrast ratio 4000:1
User Friendly and Fast Installation
Truss hanging and ground support both available
Fast Lock and handle designed user friendly
Front and rear access
Tools free installation
Slim,Light Weight and Quiet
500mm*500mm or 500mm*1000mm options
80mm thickness
Fanless design
Smart Concave and Convex
Both 500mm*500mm and 500mm*1000mm cabinets are arc-able
0°-10° concave and convex degree
Packaing and Shipping
Stage Video Wall Parameters
| Physical Pitch | 3.91mm | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 65,536 pixels/㎡ | 43,264 pixels/㎡ | 28,224 pixels/㎡ | 25,600pixels/㎡ |
| Module Dimensions (W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 64*64 | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H) | 128*128/128*256 | 104*104/104*208 | 84*84/84*168 | 80*80/80*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/500W/panel | 225/500W/panel | 225/500W/panel | 225/500W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >6,000nits | >6,000nits | >6,000nits | >6,000nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Max Staking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
About Bako Vision
1. Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
2. BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
3. BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
4. BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
