Product Details:
Payment & Shipping Terms:
|
| Module Size: | 480x320mm | Leds: | Kinglight |
|---|---|---|---|
| Driver Ic: | ICN2038S | Power Supply: | Meanwell |
| Controller: | Nova | Cabinet Size: | 1000x500mm |
| Highlight: | clear led screen,see through led screens |
||

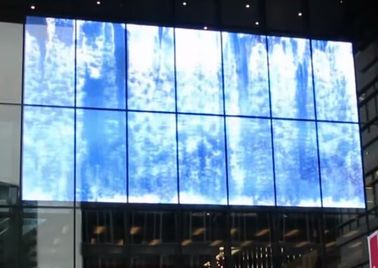

Hight brightness of 5500 Nits P16 Transparent Led Screen for media facade
P16 Transparent Led Screen Features
P16 Transparent Led Screen Parameter
| BG-16 | |
| Physical Pitch | 16mm |
| Pixel Configuration | SMD1921 |
| Pixel Density | 3906pixels/m² |
| Module Dimensions (WxH)(mm) | 480x320 |
| Panel Dimensions (WxH)(mm) | 960x640 |
| NO. of Modules Per Panel(WxH) | 2x2 |
| Physical Resolution of Module(WxH) | 30x20 |
| Physical Resolution of Panel(WxH) | 60x40 |
| Panel Material | Aluminum |
| Single Cabinet Weight | <14kg/m² |
| Gray Scale | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2000:01:00 |
| Average Power Consumption | 218W/m² |
| Max. Power Consumption | 650W/m² |
| Operating Temp/Humidity | -10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
| Refresh Rate | >1920Hz |
| Brightness | >5500 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| IP Rating(Front/Rear) | IP30 |
| Servicing | Rear |
| Scan Method | Static Scan |
